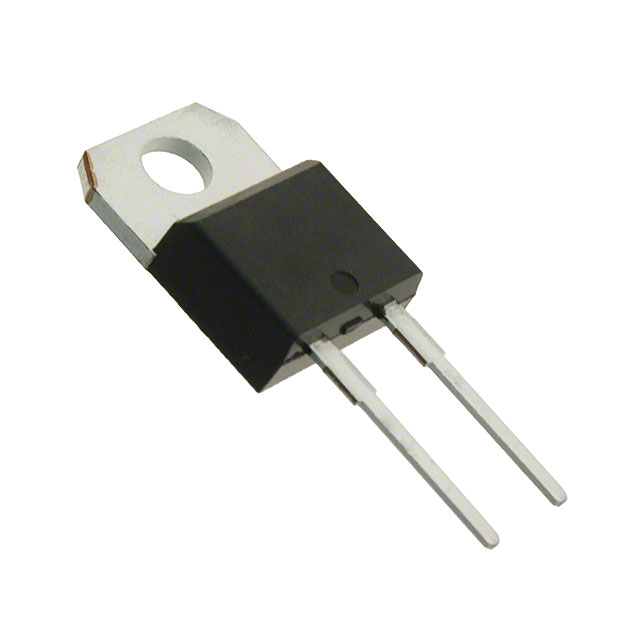

STTH8S06 系列 8 A 600 V Turbo 2 超快 高压 整流器 - TO-220AC
标准 8A 通孔 TO-220AC
得捷:
DIODE GEN PURP 600V 8A TO220AC
立创商城:
600V 8A 12ns
贸泽:
Rectifiers ULT FAST HI VLT RECT TURBO 2
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode STTH8S06D rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C. Its peak non-repetitive surge current is 60 A, while its maximum continuous forward current is 8 A. It is made in a single configuration.
安富利:
Diode Switching 600V 8A 2-Pin2+Tab TO-220AC Tube
富昌:
STTH8S06 Series 8 A 600 V Turbo 2 Ultrafast High Voltage Rectifier - TO-220-2
Chip1Stop:
Diode Switching 600V 8A 2-Pin2+Tab TO-220AC Tube
Verical:
Rectifier Diode Switching 600V 8A 18ns 2-Pin2+Tab TO-220AC Tube
Newark:
Fast / Ultrafast Power Diode, 600 V, 8 A, Single, 3.4 V, 18 ns, 60 A
Win Source:
DIODE GEN PURP 600V 8A TO220AC
正向电压 3.4V @8A
热阻 3 ℃/W
反向恢复时间 18 ns
正向电流 8 A
最大正向浪涌电流(Ifsm) 60 A
正向电压Max 3.4 V
正向电流Max 8000 mA
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Through Hole
引脚数 2
封装 TO-220-2
长度 10.4 mm
宽度 4.6 mm
高度 9.3 mm
封装 TO-220-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH8S06D ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
8ETH06 威世 | 功能相似 | STTH8S06D和8ETH06的区别 |
HFA08TB60PBF 威世 | 功能相似 | STTH8S06D和HFA08TB60PBF的区别 |
HFA08TB60 威世 | 功能相似 | STTH8S06D和HFA08TB60的区别 |
