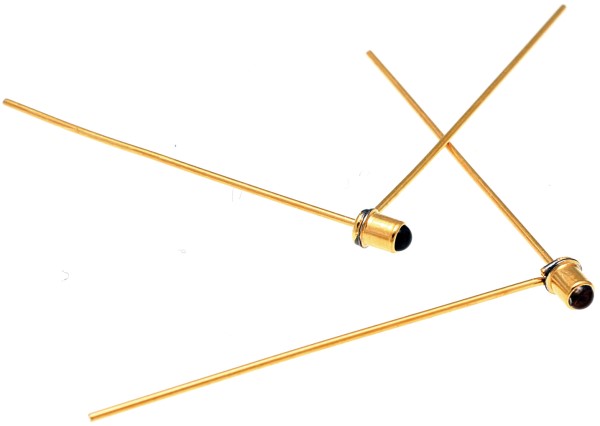

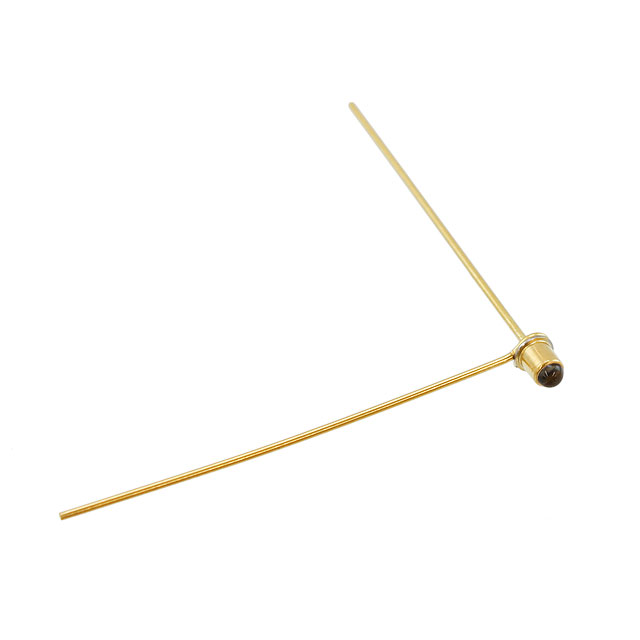

SD1410 Series PhototransistorsThe SD1410, from Honeywell, are a family of silicon photodarlingtons. They are in a compact, metal can package with a glass lens. They are through-hole mounted with flexible leads which can be shaped to fit a variety of mounting configurations. Features of the SD1410 photodarlingtons: Compact metal can package Acceptance angle: 24° High output currents Operating temperature: -55 to +125 °C ### IR 光电晶体管，Honeywell
SD1410 Series Phototransistors
The SD1410, from , are a family of silicon photodarlingtons. They are in a compact, metal can package with a glass lens. They are through-hole mounted with flexible leads which can be shaped to fit a variety of mounting configurations.
Features of the SD1410 photodarlingtons:
Compact metal can package
Acceptance angle: 24°
High output currents
Operating temperature: -55 to +125 °C
### IR ，Honeywell
额定电压DC 5.00 V
通道数 1
针脚数 2
波长 880 nm
视角 24°
极性 NPN
耗散功率 75 mW
功耗 75.0 mW
上升时间 75000 ns
击穿电压集电极-发射极 15 V
额定功率Max 75 mW
下降时间 75 µs
下降时间Max 75000 ns
上升时间Max 75000 ns
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 75 mW
安装方式 Through Hole
引脚数 2
封装 TO-99
长度 2.41 mm
宽度 2.41 mm
高度 3.1 mm
脚长度 1 in
封装 TO-99
颜色 Infrared
材质 Silicon
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 3A001.a.2.c
HTS代码 8541407080
