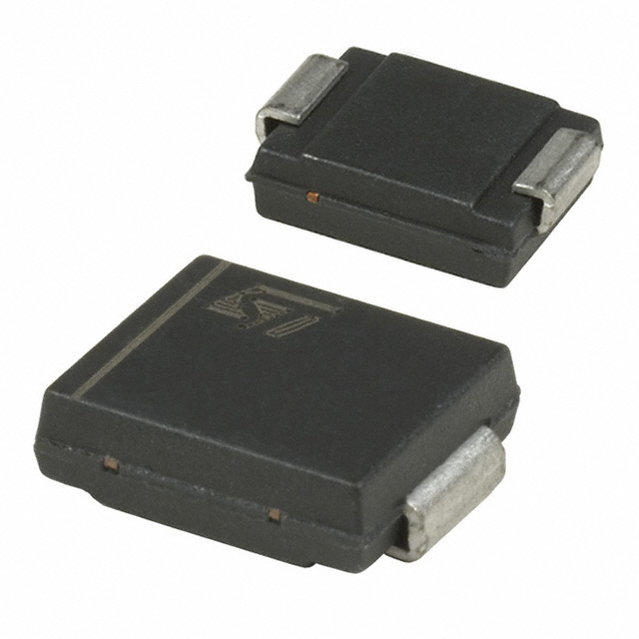

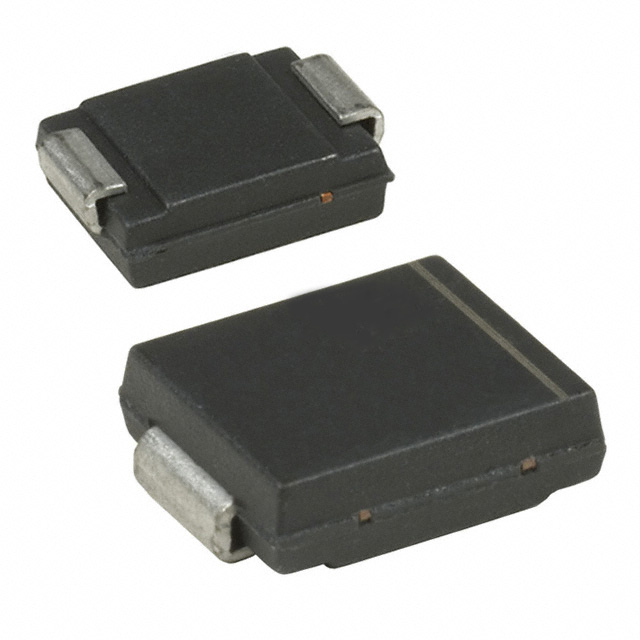

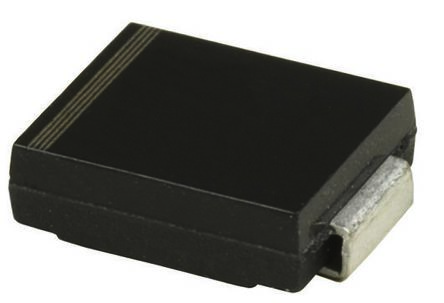

STMICROELECTRONICS SM15T27AY TVS二极管, AEC-Q362, Transil SM15T系列, 单向, 23.1 V, 48.3 V, DO-214AB, 2 引脚
Transil™ TVS SMT 单向 1500W,SMCJ 系列,STMicroelectronics
### 瞬态电压抑制器,STMicroelectronics
得捷:
TVS DIODE 23.1VWM 48.3VC SMC
欧时:
TVS 二极管 STMicroelectronics SM15T27AY 单向, 1500W, 48.3V, 2针 DO-214AB SMC封装
贸泽:
ESD 抑制器/TVS 二极管 1500 W 10kW Transil 5.8V to 70V Uni
e络盟:
TVS二极管, SM15T系列, 单向, 23.1 V, 48.3 V, DO-214AB, 2 引脚
艾睿:
If you&s;re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this SM15T27AY TVS diode from STMicroelectronics is perfect for you. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 0.2 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 48.3 V and minimum breakdown voltage is 25.7 V. This TVS diode has a minimum operating temperature of -40 °C and a maximum of 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
安富利:
ESD Suppressor TVS 30KV 2-Pin SMC T/R
Chip1Stop:
Diode TVS Single Uni-Dir 23.1V 1.5KW Automotive 2-Pin SMC T/R
Newark:
# STMICROELECTRONICS SM15T27AY Transient Voltage Suppressor, TVS, Transil SM15T Series, Unidirectional, 23.1 V, DO-214AB, 2
工作电压 23.1 V
击穿电压 27 V
电路数 1
针脚数 2
耗散功率 1.5 kW
钳位电压 48.3 V
最大反向电压(Vrrm) 23.1V
测试电流 1 mA
最大反向击穿电压 28.4 V
脉冲峰值功率 1500 W
最小反向击穿电压 25.7 V
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.15 mm
宽度 6.25 mm
高度 2.45 mm
封装 DO-214AB-2
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, 汽车级, 电源管理, Power Management, Aerospace, Defence, Military, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM15T27AY ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SM15T27A 意法半导体 | 类似代替 | SM15T27AY和SM15T27A的区别 |
