SDR-BN概述

电线标签和标记 MARKING BROWN

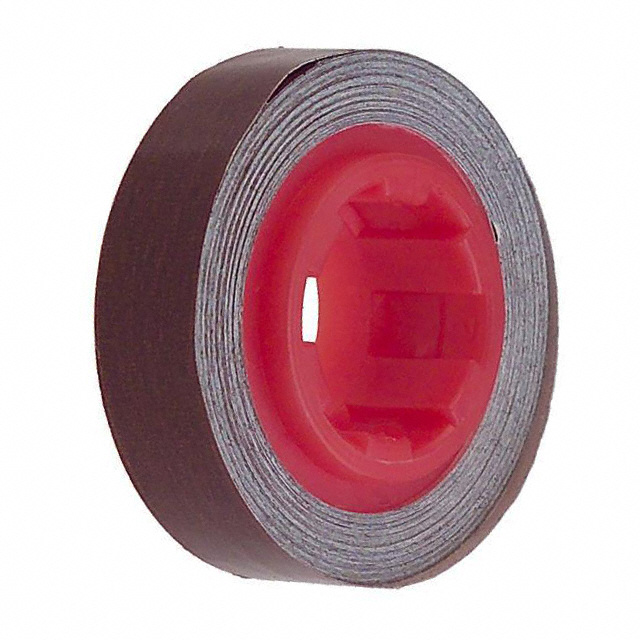

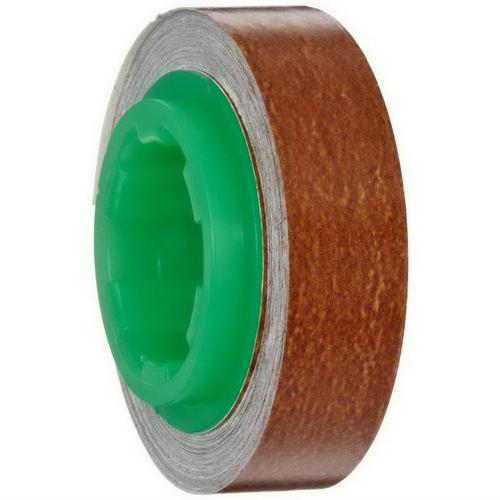

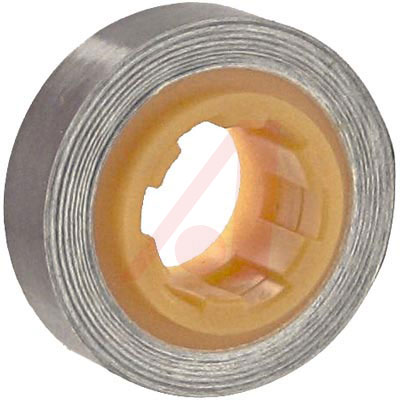

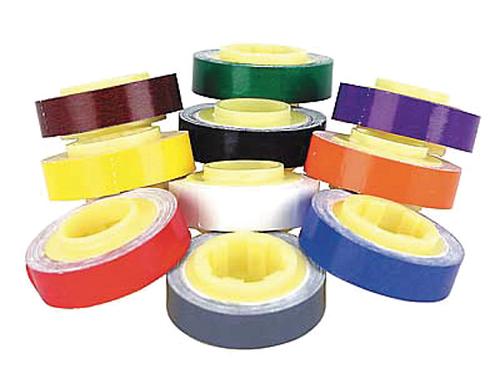

™ ScotchCode™ Wire Marker Tape Refill Roll

5.5 mil reinforced flame-retardant epoxy film tape with an acrylic high tack pressure-sensitive adhesive. Tape resists abrasion, oil and water. Excellent adhesion to clean Neoprene™, Hypalon, nylon and PVC insulation materials.

Marking all types of wire and cable including power, control, fiber optic, electronic, telecommunications and instrumentation. Phase identification on large or small gauge wire or cable. Identification of terminal blocks, terminal strips, and wire in panel boards or a piece of switchgear. Automotive applications on tubing, hoses and replacement parts.

SDR-BN中文资料参数规格
技术参数

工作温度Max 121 ℃

工作温度Min -40 ℃

外形尺寸

长度 2438.4 mm

宽度 0.215 in

物理参数

颜色 Brown

材质 Polyester

工作温度 -40℃ ~ 121℃

其他

产品生命周期 Active

包装方式 Roll

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 3919102055

数据手册

在线购买SDR-BN
型号: SDR-BN
制造商: 3M
描述:电线标签和标记 MARKING BROWN
