与集电极开路输出四路2输入正与非缓冲区 QUADRUPLE 2-INPUT POSITIVE-NAND BUFFERS WITH OPEN-COLLECTOR OUTPUTS
NAND Gate IC 4 Channel Open Collector 14-SOP
得捷:
IC GATE NAND OPEN 4CH 2-IN 14SOP
德州仪器TI:
4-ch, 2-input, 4.75-V to 5.25-V bipolar NAND gates with open-collector outputs
贸泽:
逻辑门 Quad 2-input pos-NAND buffers
艾睿:
Perform multiple different logical operations through the use of Texas Instruments&s; SN7438NSR logic gates. With an open collector output, this is power management at its best. This gate has a minimum operating temperature of 0 °C and a maximum of 70 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
Chip1Stop:
NAND Gate 4-Element 2-IN Bipolar 14-Pin SOP T/R
Verical:
NAND Gate 4-Element 2-IN Bipolar 14-Pin SOP T/R
AMEYA360:
IC GATE NAND 4CH 2-INP 14-SO
Win Source:
NAND Gate IC 4 Channel Open Collector 14-SO

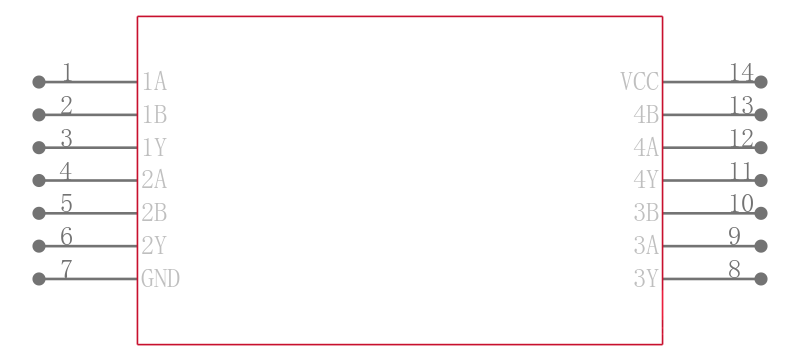

电源电压DC 4.75V ~ 5.25V
输出接口数 1
输出电流 48.0 mA
电路数 4
位数 4
传送延迟时间 22.0 ns
电压波节 5.00 V
逻辑门个数 4
输入数 2
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 14
封装 SOP-14
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN7438NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN7438NSRE4 德州仪器 | 完全替代 | SN7438NSR和SN7438NSRE4的区别 |
7438SJ 飞兆/仙童 | 功能相似 | SN7438NSR和7438SJ的区别 |
