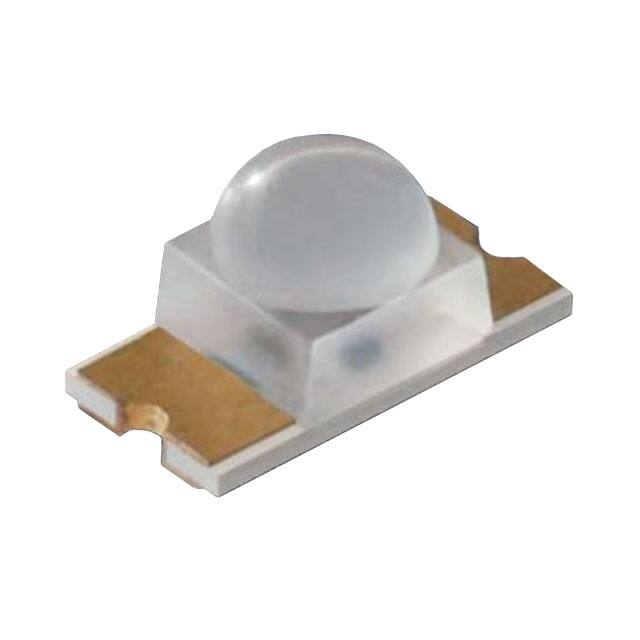

SML-S13VTT68

发光二极管, 红色, SMD, 1206 [3216公制], 20 mA, 1.9 V, 630 nm

The from ROHM is a chip with lens emitting red colour light. It has narrow directivity and high brightness. It is used in coin processing machines, air-conditioner, digital multimeter, brushless DC motor control, AC servo, network attached storage, DVR/DVS, stepper motor control and electric bike.

.

Size of LED is 3216 1206 t = 1.85mm

.

AlGalnP chip structure

.

Power dissipation Pd of 75mW

.

Typical forward voltage of 1.9V at IF = 20mA

.

Typical dominant wavelength of 630nm at IF = 20mA

.

Typical luminous intensity of 450mcd at IF = 20mA

.

Operating temperature of -40°C to 85°C

.

Availability of reverse mounting

.

Moulded type with lens

.

Automatic mount and reflow
