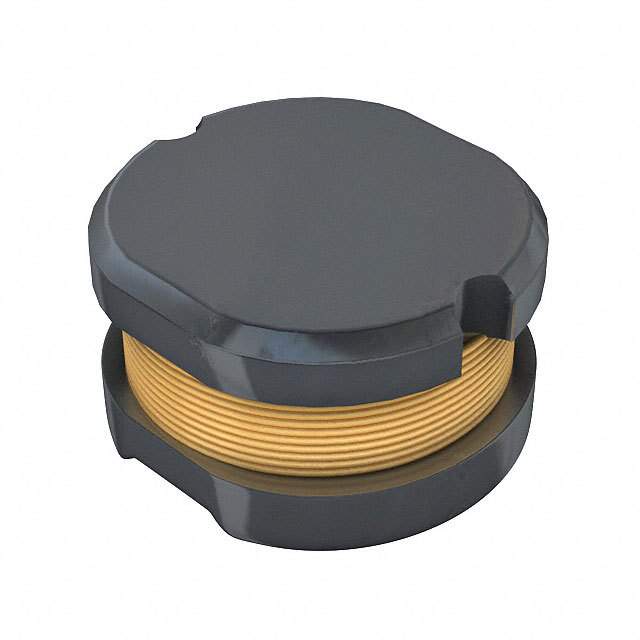

BOURNS SDR0302-561KL 表面贴装功率电感器, SDR0302系列, 560 µH, ± 10%, 非屏蔽, 16 ohm, 95 mA
Inductor Power Wirewound 560uH 10% 100KHz 43Q-Factor Ferrite 95mA 16Ohm DCR Automotive T/R
得捷:
FIXED IND 560UH 95MA 16 OHM SMD
立创商城:
560uH ±10% 95mA 16Ω
e络盟:
BOURNS SDR0302-561KL 表面贴装功率电感器, SDR0302系列, 560 µH, ± 10%, 非屏蔽, 16 ohm, 95 mA
艾睿:
Inductor Power Wirewound 560uH 10% 1KHz 43Q-Factor Ferrite 95mA 16Ohm DCR T/R
安富利:
Ind Power Wirewound 560uH 10% 1KHz 43Q-Factor Ferrite 95mA T/R
Verical:
Inductor Power Wirewound 560uH 10% 100KHz 43Q-Factor Ferrite 0.095A 16Ohm DCR Automotive T/R
Newark:
# BOURNS SDR0302-561KL Surface Mount Power Inductor, SDR0302 Series, 560 H, 10%, Unshielded, 16 ohm, 95 mA
MASTER:
Inductor Power Wirewound 560uH 10% 100KHz 43Q-Factor Ferrite 95mA 16Ohm DCR Automotive T/R
Online Components:
Inductor Power Wirewound 560uH 10% 100KHz 43Q-Factor Ferrite 95mA 16Ohm DCR Automotive T/R
Electro Sonic:
Inductor Power Wirewound 560uH 10% 100KHz 43Q-Factor Ferrite 95mA 16Ohm DCR Automotive T/R
额定电流 95 mA
电感 560 µH
自谐频率 4.8 MHz
Q值 43.0
电感公差 ±10 %
测试频率 1 kHz
电阻DC） 16 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 16 Ω

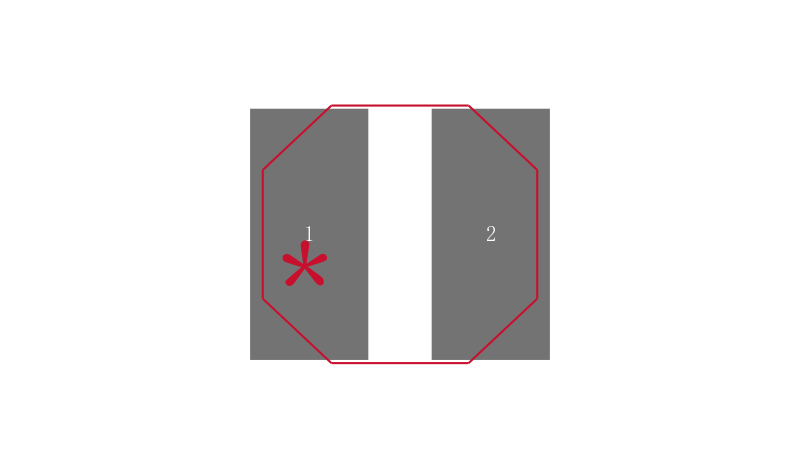

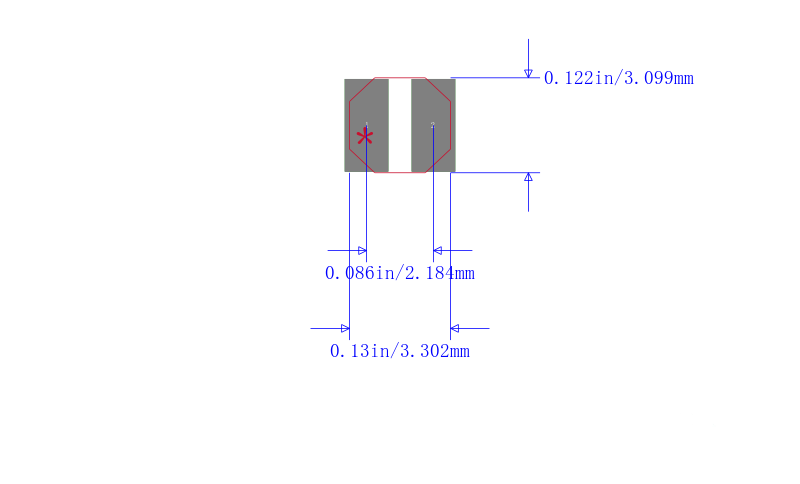

封装 3mm x 2.8mm x 2.5mm
高度 2.8 mm
封装 3mm x 2.8mm x 2.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
