四路2输入正或门 QUADRUPLE 2-INPUT POSITIVE-OR GATES
description
These devices contain four independent 2-input positive-OR gates. They perform the Boolean functions Y = A • B or Y = A + B in positive logic.
The SN54ALS32 and SN54AS32 are characterized for operation over the full military temperature range of –55°C to 125°C. The SN74ALS32 and SN74AS32 are characterized for operation from 0°C to 70°C.
• Package Options Include Plastic Small-Outline D Packages, Ceramic Chip Carriers FK, and Standard Plastic N and Ceramic J 300-mil DIPs
电源电压DC 4.50V ~ 5.50V
输出电流 20.0 mA
电路数 4
位数 4
传送延迟时间 5.80 ns
电压波节 5.00 V
逻辑门个数 4
输出电流驱动 -100 µA
输入数 2
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount

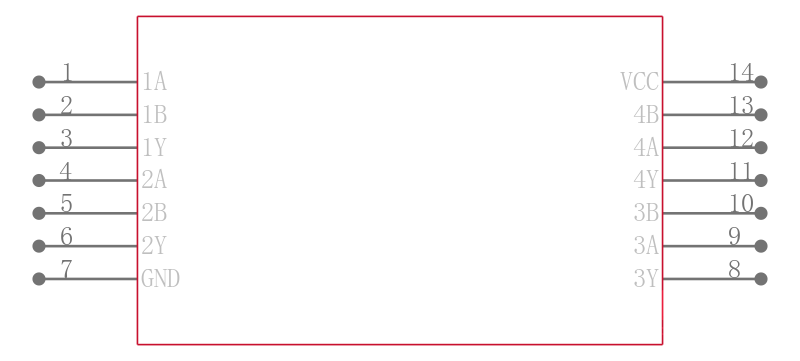

引脚数 14

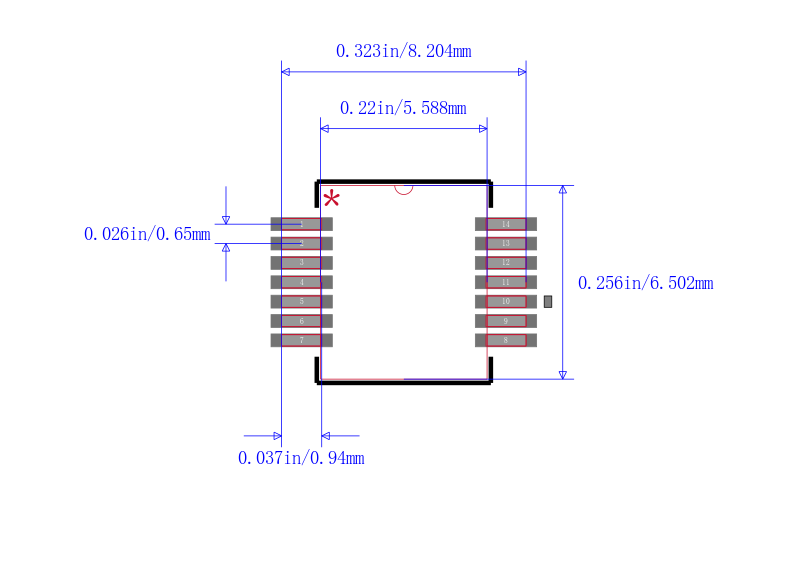

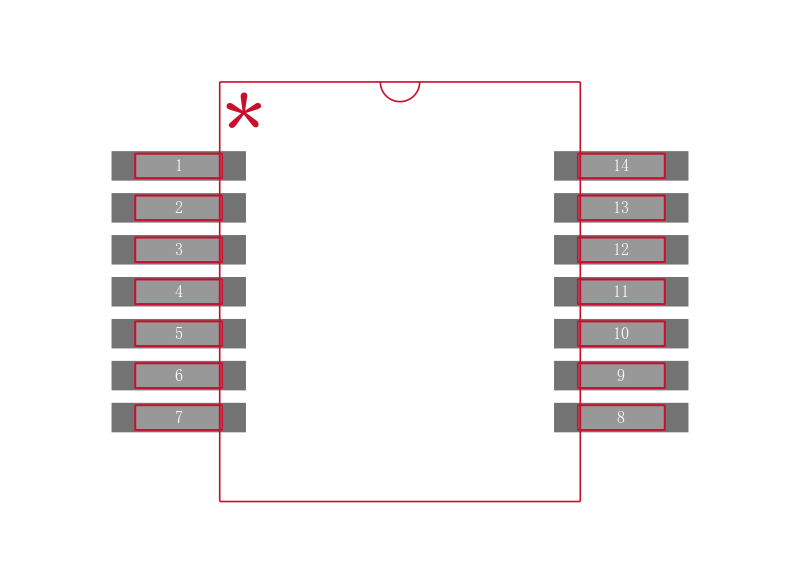

封装 SSOP-14
长度 6.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AS32DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AS32DBRG4 德州仪器 | 完全替代 | SN74AS32DBR和SN74AS32DBRG4的区别 |
SN74AS32DBRE4 德州仪器 | 完全替代 | SN74AS32DBR和SN74AS32DBRE4的区别 |
