SN74AUP1G97YZPR

低功耗可配置的多功能的门 LOW-POWER CONFIGURABLE MULTIPLE-FUNCTION GATE

DESCRIPON/ORDERING INFORMATION

The AUP family is TI"s premier solution to the industry"s low-power needs in battery-powered portable

applications. This family ensures a very low static- and dynamic-power consumption across the entire V

CC range of 0.8 V to 3.6 V, resulting in increased battery life see Figure 1. This product also maintains excellent signal integrity see the very low undershoot and overshoot characteristics shown in Figure 2.

FEATURES

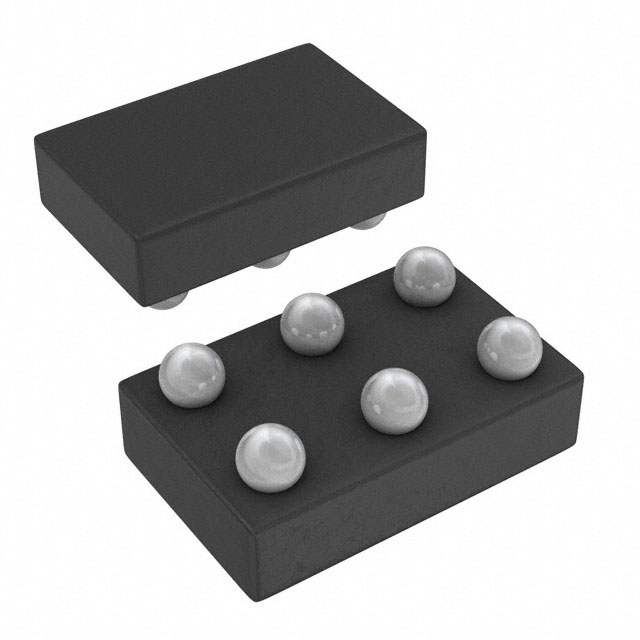

• Available in the Texas Instruments NanoStar™ Package

• Low Static-Power Consumption ICC= 0.9 mA Max

• Low Dynamic-Power Consumption Cpd= 4.8 pF Typ at 3.3 V

• Low Input Capacitance CI= 1.5 pF Typ

• Low Noise – Overshoot and Undershoot <10% of VCC

• Ioff Supports Partial-Power-Down Mode Operation

• Includes Schmitt-Trigger Inputs

• Wide Operating VCC Range of 0.8 V to 3.6 V

• Optimized for 3.3-V Operation

• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation

• tpd = 5.6 ns Max at 3.3 V

• Suitable for Point-to-Point Applications

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Performance Tested Per JESD 22

– 2000-V Human-Body Model A114-B, Class II

– 1000-V Charged-Device Model C101
