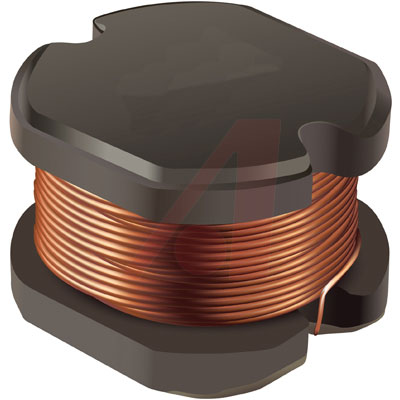

BOURNS SDE0805A-1R5M 表面贴装功率电感器, AEC-Q200 SDE0805A系列, 1.5 µH, ± 20%, 非屏蔽, 0.02 ohm, 5.8 A
1.5 µH 无屏蔽 绕线 器 5.8 A 20 毫欧最大 非标准
立创商城:
1.5uH ±20% 5.8A 15mΩ
得捷:
FIXED IND 1.5UH 5.8A 20 MOHM SMD
e络盟:
功率电感SMD, 1.5 µH, 5.8 A, 非屏蔽, 6.5 A, SDE0805A 系列, 7.8mm x 7mm x 5mm
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SDE0805A-1R5M surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 20%. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 115MTyp Hz. This SMD inductor has a maximum DC current of 5.8Typ A with a maximum resistance of 20m Ohm. It has an inductance of 1.5u H. This product is 8.1 mm long, 5.5 mm tall and 7.3 mm deep.
Allied Electronics:
SMD Non-Shielded Power Inductor; 1.5uH; 20%; SDE0805A
安富利:
Ind Power 1.5uH 20% 1MHz Ferrite 5.8A T/R
Verical:
Inductor Power Unshielded Wirewound 1.5uH 20% 1MHz Ferrite 5.8A 0.02Ohm DCR Automotive T/R
额定电流 5.8 A
容差 ±20 %
电感 1.5 µH
自谐频率 115 MHz
电感公差 ±20 %
测试频率 1 MHz
电阻DC) 0.02 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.02 Ω
安装方式 Surface Mount
引脚数 2
封装 0805
宽度 7 mm
高度 5.5 mm
封装 0805
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
