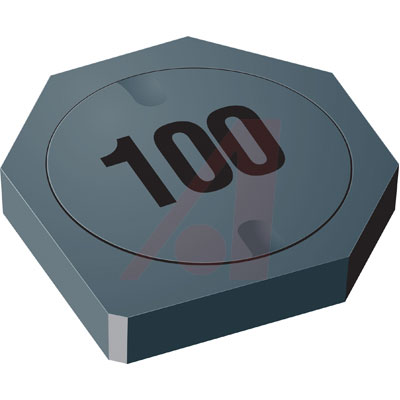

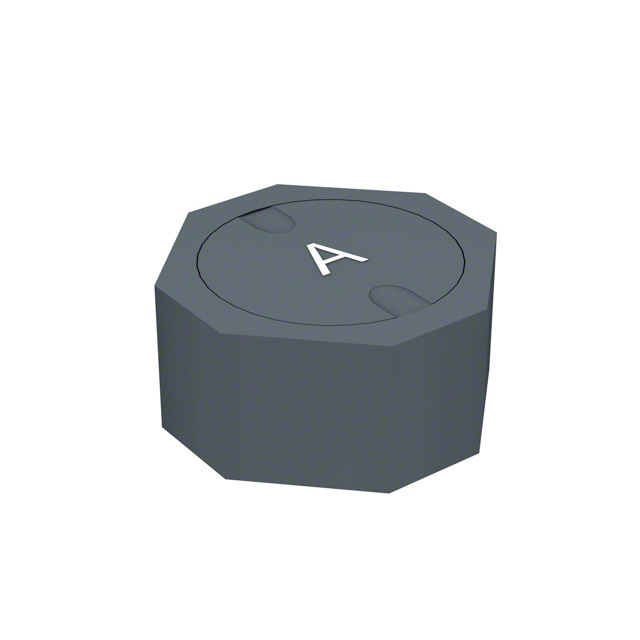

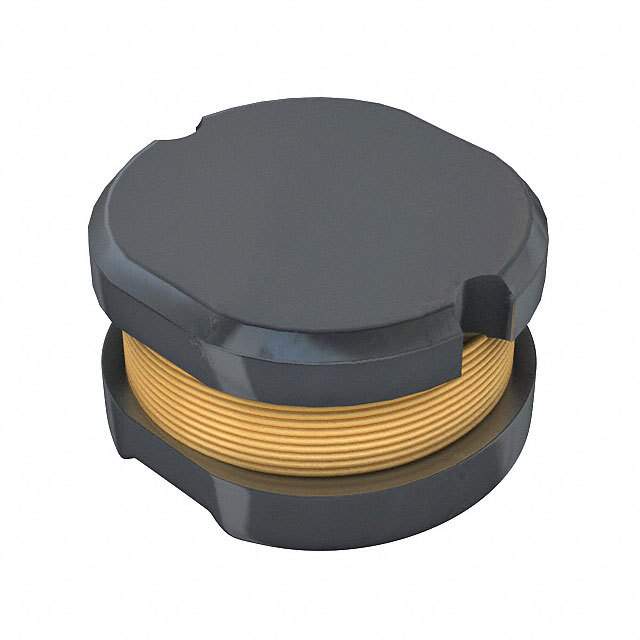

SRU3028-220Y

22uH ±30% 600mA

**Features

**

* Unit Height of 2.8 mm**

**

* Current Up to 7 A**

**

* Lead-Free**

Applications

**

* Input/Output of DC/DC Converters**

**

* Power Supplies For:**

**Portable Communication Equipment**

**Camcorders**

**LCD TVs**

**Car Radios

得捷:
FIXED IND 22UH 600MA 270MOHM SMD

贸泽:
Fixed Inductors 22uH 30% SMD 3028

艾睿:
Save valuable space on a PCB with this power SRU3028-220Y surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 22u H. This device is made with wirewound technology. This product is 3.5 mm long, 3 mm tall and 3.5 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 15MTyp Hz. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 270m Ohm.

Allied Electronics:
Inductor, SMT Power/Shielded; 22uH; 30% Tol; SRF Min 15MHz; DCR 0.27 Ohm; 18Qref

安富利:
Ind Power Shielded Wirewound 22uH 30% 100KHz 18Q-Factor Ferrite 600mA T/R

Chip1Stop:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 18Q-Factor Ferrite 600mA 270mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 18Q-Factor Ferrite 600mA 270mOhm DCR T/R

MASTER:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 18Q-Factor Ferrite 600mA 270mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 18Q-Factor Ferrite 600mA 270mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 18Q-Factor Ferrite 600mA 270mOhm DCR T/R
