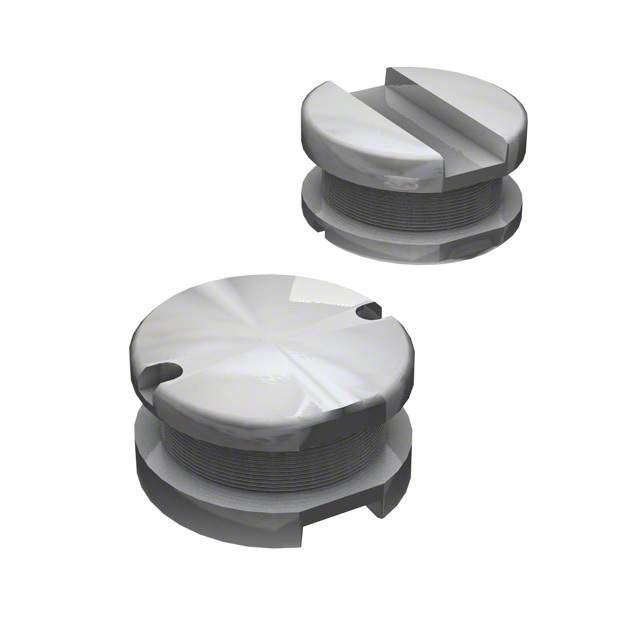

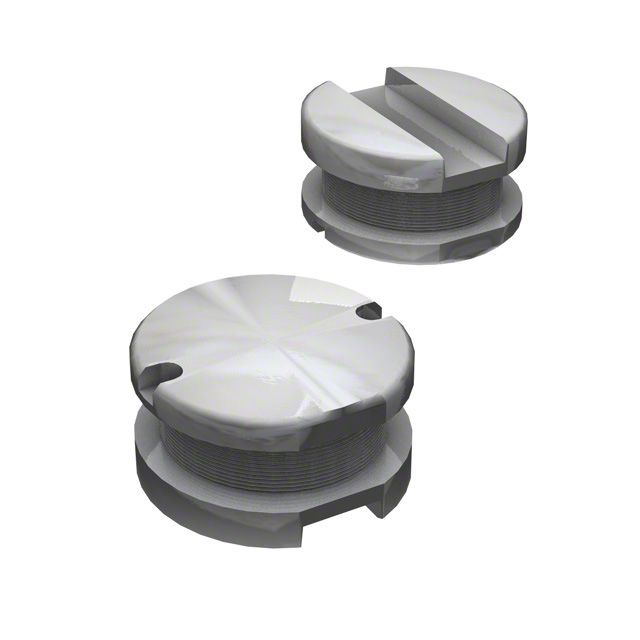

SDR1307-680KL

BOURNS  SDR1307-680KL  表面贴装功率电感器, SDR1307系列, 68 µH, ± 10%, 非屏蔽, 0.12 ohm, 2.3 A

68 µH 无屏蔽 绕线 器 2.3 A 120 毫欧最大 非标准

得捷:
FIXED IND 68UH 2.3A 120 MOHM SMD

立创商城:
68uH ±10% 2.3A 120mΩ

e络盟:
功率电感SMD, 68 µH, 2.3 A, 非屏蔽, 3.5 A, SDR1307系列, 13mm x 13mm x 7mm

艾睿:
This power SDR1307-680KL surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This SMD inductor has a maximum DC current of 2.3 A with a maximum resistance of 120m Ohm. It has an inductance of 68u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 7M Hz. This device utilizes wirewound technology. It has a tolerance of 10%. This product is 7.3 mm tall with a diameter of 13.5 mm.

安富利:
Ind Power Wirewound 68uH 10% 100KHz 24Q-Factor Ferrite 2.3A T/R

Verical:
Inductor Power Wirewound 68uH 10% 100KHz 24Q-Factor Ferrite 2.3A 0.12Ohm DCR T/R

Newark:
# BOURNS  SDR1307-680KL  Surface Mount Power Inductor, SDR1307 Series, 68 H, 10%, Unshielded, 0.12 ohm, 2.3 A

MASTER:
Inductor Power Wirewound 68uH 10% 100KHz 24Q-Factor Ferrite 2.3A 120mOhm DCR T/R

Online Components:
Inductor Power Wirewound 68uH 10% 100KHz 24Q-Factor Ferrite 2.3A 120mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 68uH 10% 100KHz 24Q-Factor Ferrite 2.3A 120mOhm DCR T/R
