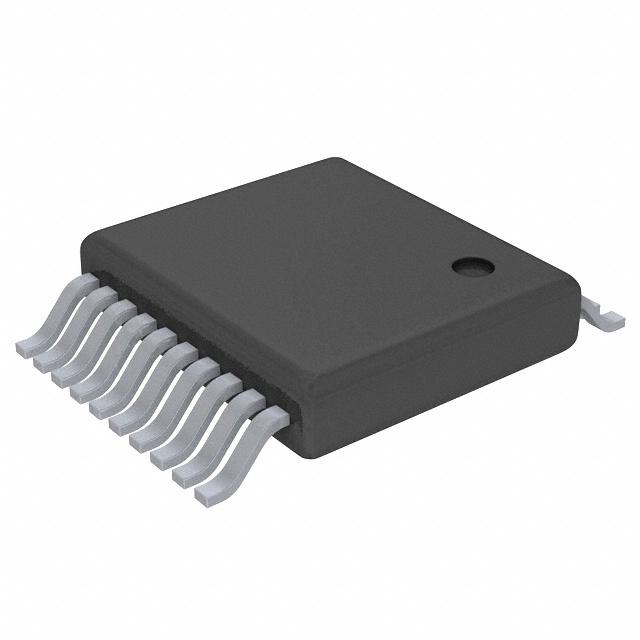

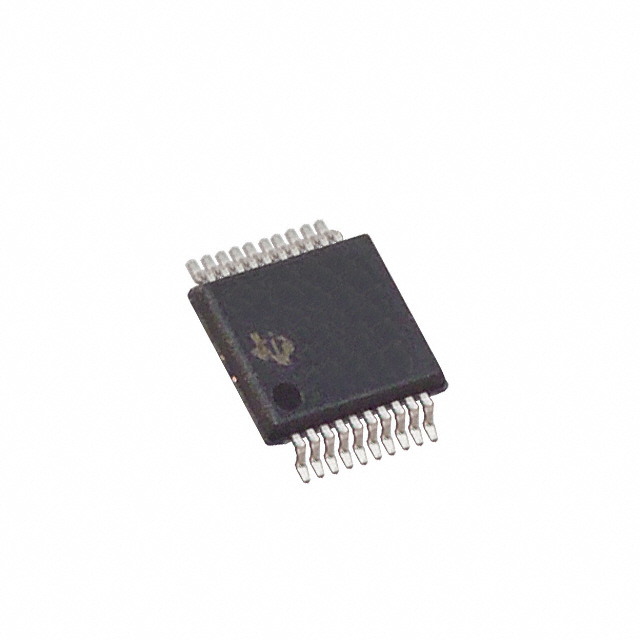

SN74LV541ADGVRG4

Buffer/Line Driver 8CH Non-Inverting 3-ST CMOS 20Pin TVSOP T/R

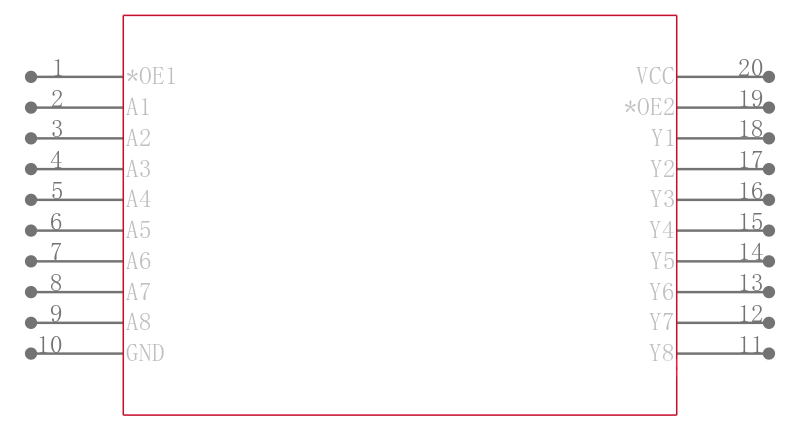

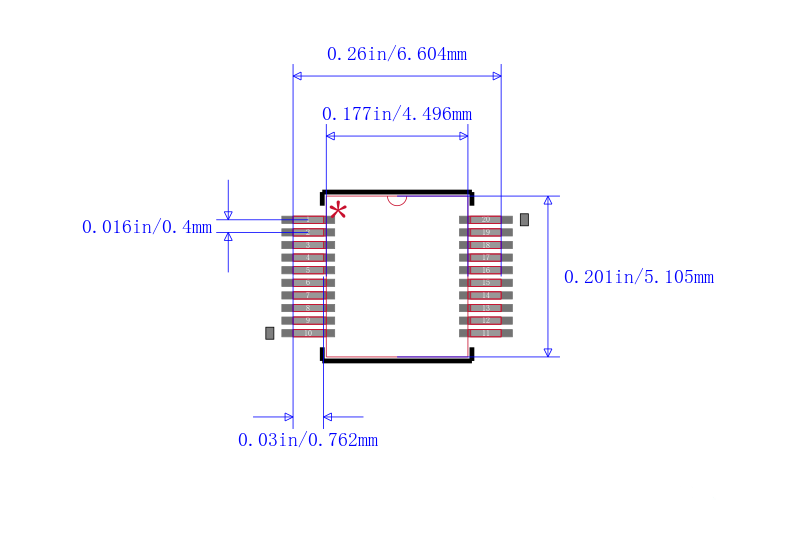

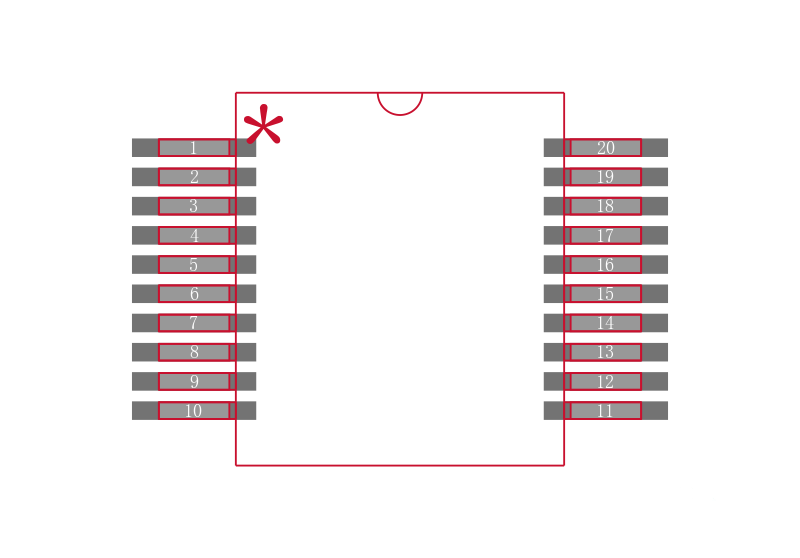

Description

The SN74LV541A device is an octal buffer/driver designed for 2-V to 5.5-V VCC operation.

Features

• 2-V to 5.5-V VCC Operation

• Max tpd of 6 ns at 5 V

• Typical VOLP Output Ground Bounce

   < 0.8 V at VCC = 3.3 V, TA = 25°C

• Typical VOHV Output VOH Undershoot

   > 2.3 V at VCC = 3.3 V, TA = 25°C

• Support Mixed-Mode Voltage Operation on All Ports

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

   – 3000-V Human-Body Model

   – 200-V Machine Model

   – 2000-V Charged-Device Model

Applications

• Smart Grids

• TVs

• Set-Top-Boxes

• Audio

• Servers

• Surveillance Cameras

• Network Switches

• Infotainment
