SN74LVTH573DBRE4

3.3 -V ABT八路透明D类锁存器具有三态输出 3.3-V ABT OCTAL TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS

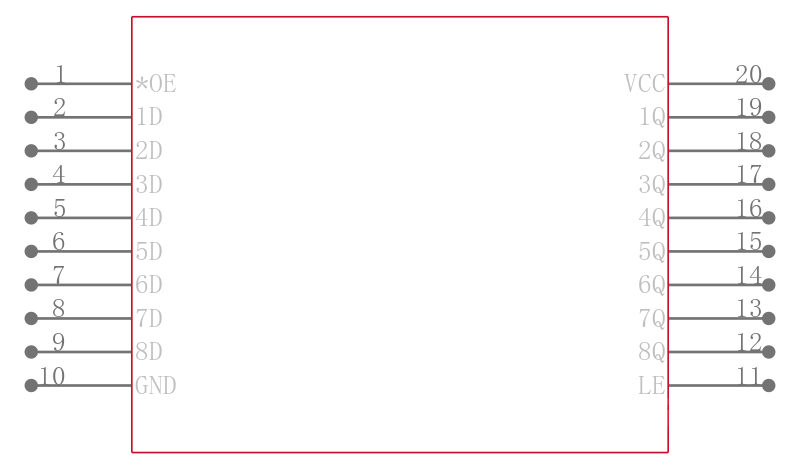

description/ordering information

These octal latches are designed specifically for low-voltage 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

The eight latches of the ’LVTH573 devices are transparent D-type latches. While the latch-enable LE input is high, the Q outputs follow the data D inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs.

• Support Mixed-Mode Signal Operation 5-V Input and Output Voltages With 3.3-V VCC

• Support Unregulated Battery Operation Down to 2.7 V

• Typical VOLP Output Ground Bounce

   <0.8 V at VCC = 3.3 V, TA = 25°C

• Ioff and Power-Up 3-State Support Hot Insertion

• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors

• Latch-Up Performance Exceeds 500 mA Per JESD 17

• ESD Protection Exceeds JESD 22

   − 2000-V Human-Body Model A114-A

   − 200-V Machine Model A115-A
