Alps Detector Switches - SPVQ Waterproof Series
The Alps SPVQ series are non-shorting, low-current, IP67 waterproof detector switches with a 3mm long travel that are designed for use in wet environments within industrial vehicles and in car open/close door detection and many other applications.
These SPVQ waterproof detector switches have a maximum switching current rated to 0.1A at 12Vdc and a minimum rating of 50μA at 3Vdc with 500mΩ contact resistance, 100MΩ minimum insulation resistance and 500Vac withstand voltage for one minute.

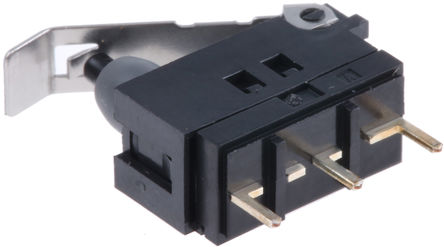

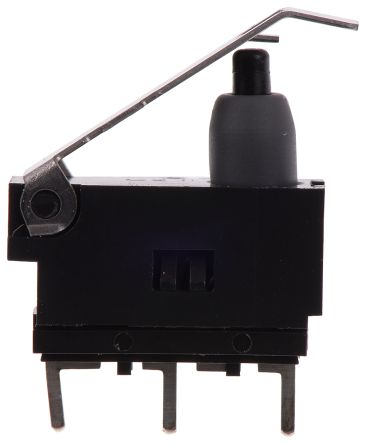

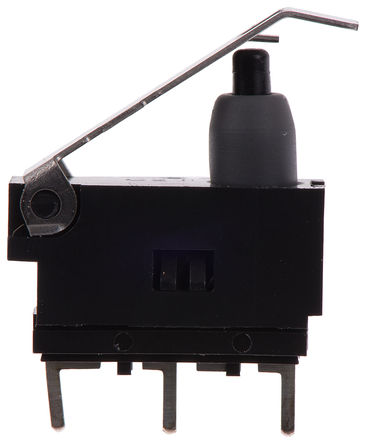

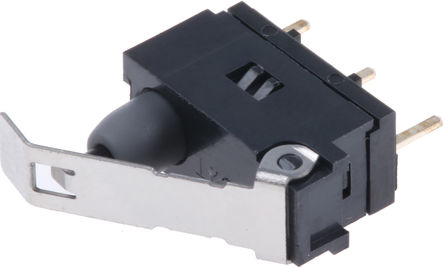

The SPVQ waterproof detector switches are available in options that include versions with plunger or lever actuators and options of PCB mounted stock numbers 758-2120, 758-2124, 758-2133 or pre-wired with 250mm of 3 core wire stock number 758-2136 only. Plunger actuators have a 2N operating force while lever actuators have a 5.9N maximum operating force.
IP67 waterproof and dustproof detector switches
SPDT, latching action
Vehicle compatible
Long operating life of 300,000 switching cycles
