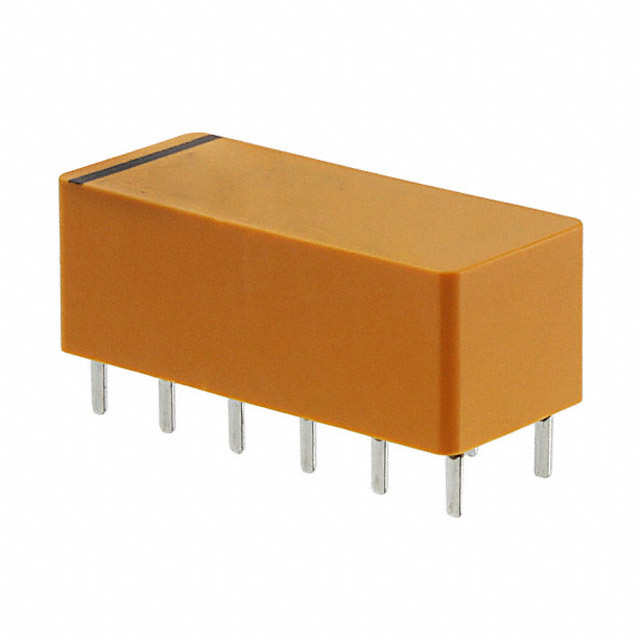

S4EB-L2-24V

24VDC 4A 锁存,双线圈

**FEATURES**

**1\. Compact with high sensitivity**

The high-efficiency polarized electromagnetic circuits of the 4-gap balanced armature and our exclusive spring alignment method achieves, with high-sensitivity in a small package, a relay that can be directly controlled by a driver chip.

**2\. Strong resistance to vibration and ****shock**

Use of 4G-BA technology realizes strong resistance to vibration and shock.

**3\. High reliability and long life**

Our application of 4G-BA technology, along with almost perfectly complete twin contact, ensures minimal contact bounce and high reliability.

**4\. Ability to provide wide-ranging ****control**

Use of 4G-BA technology with gold clad silver alloy contacts in a twin contact structure enables control

across a broad range from microcurrents of 100 µA 100 mV DC to 4 A 250 V AC.

**5\. Latching types available**

With 4G-BA technology, as well as single side stable types, convenient 2 coil latching types for circuit memory applications are also available.

**6\. Wide variety of contact formations ****available**

The compact size of the 4G-BA mechanism enables the provision of many kinds of package, including

2a2b, 3a1b, and 4a. These meet your needs across a broad range of applications.
