S2-05EU

CYNERGY3  S2-05EU.  SPST n/o 1kV Isolation 5V Coil UL 98Y7651 新

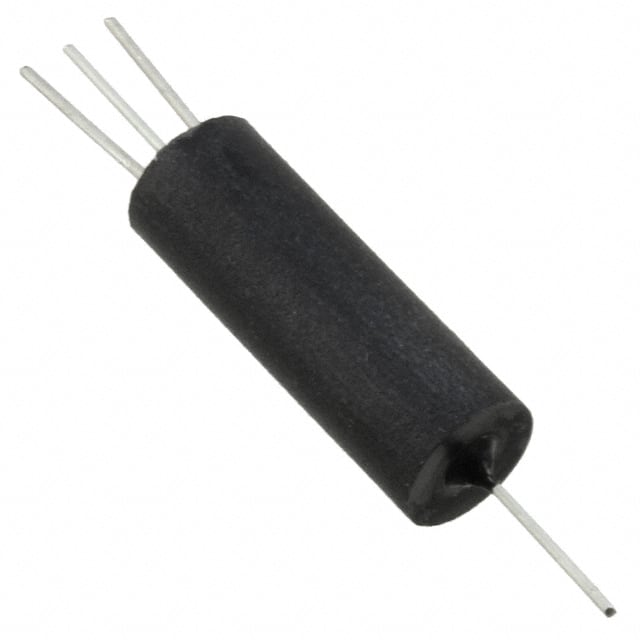

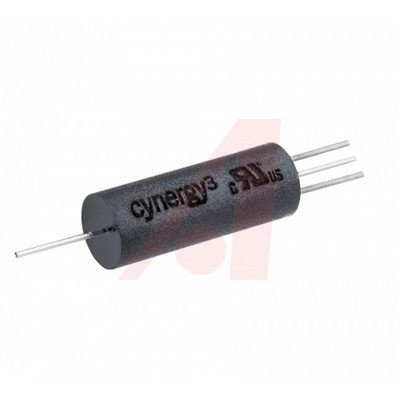

The from Cynergy3 is an UL approved axial style reed relay. The relay can be mounted in a variety of methods and orientations to suit particular applications. The lead-out wires are flexible enough to allow bending for assembly into equipment.

.

Coil voltage is 5VDC

.

Switching power is 100VA, switching voltage is 350VDC/300VAC, switching current is 1A

.

Isolation voltage is 1000VDC

.

Rhodium material, vacuum atmosphere

.

Carry current is 2.5A

.

Initial contact resistance is 100mohm

.

Isolation between contact /coil is 1000VDC

.

Operating temperature range from -40°C to +85°C

.

Coil resistance is 160 ohm
