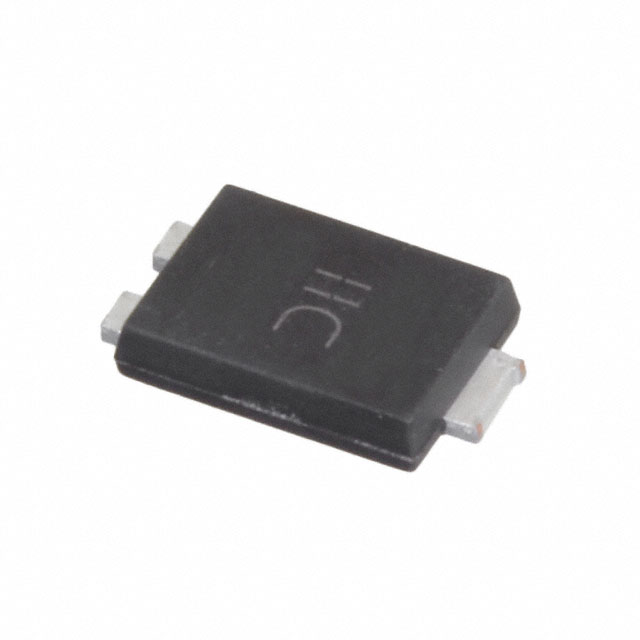

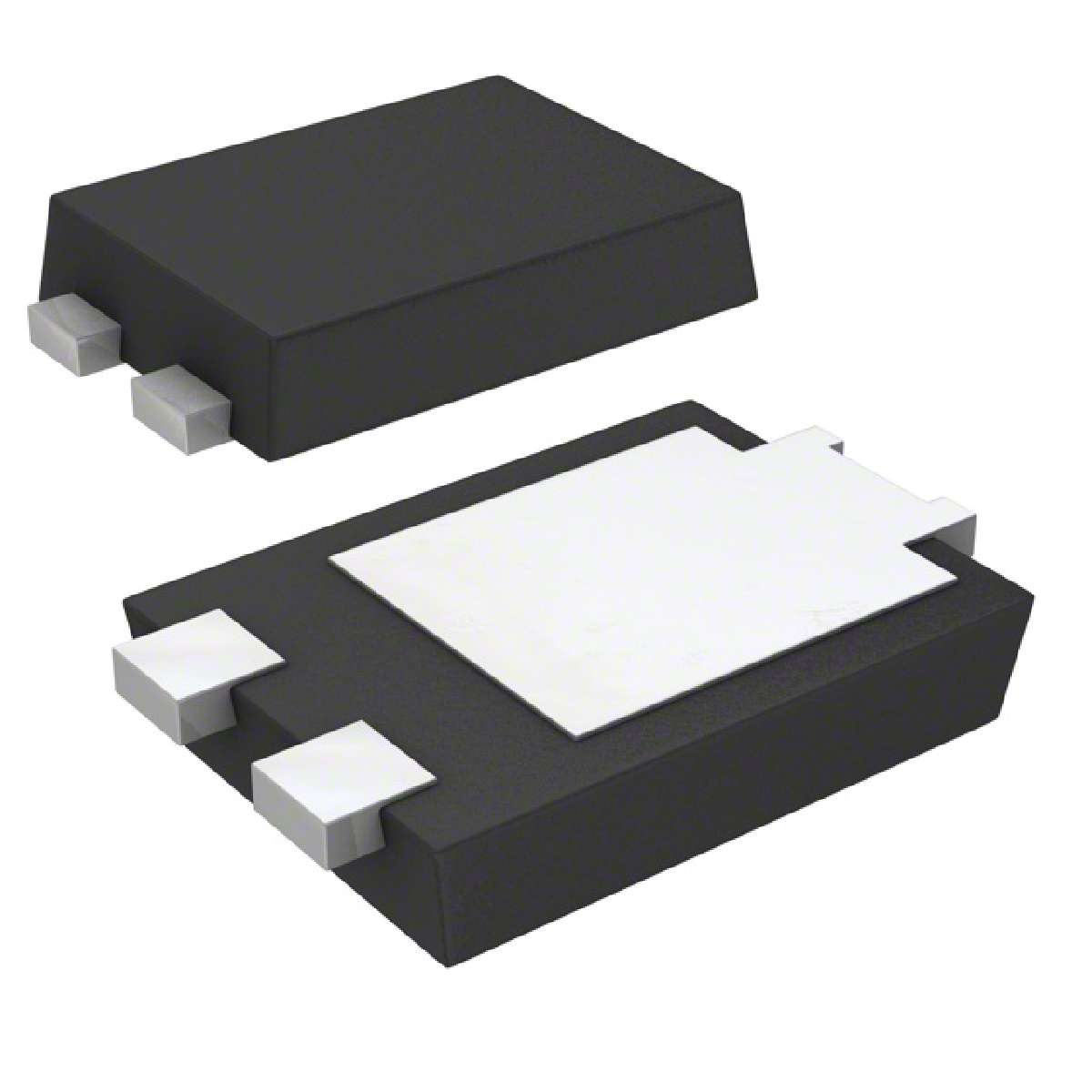

DIODES INC. SBR15U50SP5-13 肖特基整流器, 单, 50 V, 15 A, PowerDI 5, 3 引脚, 520 mV
超级势垒 50 V 15A 表面贴装型 PowerDI™ 5
得捷:
DIODE SBR 50V 15A POWERDI5
立创商城:
50V 440mV@15A 500μA@50V
贸泽:
肖特基二极管与整流器 15A SBR SUPER BARRIER RECTIFIER
e络盟:
肖特基整流器, 50 V, 15 A, 单, PowerDI 5, 3 引脚, 520 mV
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a super barrier rectifier SBR15U50SP5-13 rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. Its peak non-repetitive surge current is 256 A, while its maximum continuous forward current is 15 A. It is made in a single dual anode configuration.
Allied Electronics:
Schottky Diode SBR 50V 1A POWERDI5
安富利:
Diode Super Barrier Rectifier 50V 15A 3-Pin PowerDI 5 T/R
Chip1Stop:
Diode 50V 15A 3-Pin2+Tab PowerDI 5 T/R
Verical:
Rectifier Diode Super Barrier Rectifier 50V 15A 50ns 3-Pin3+Tab PowerDI 5 T/R
Newark:
# DIODES INC. SBR15U50SP5-13 SCHOTTKY RECTIFIER, 15A, 50V, POWERDI 5
儒卓力:
**SCHOTT.-DIODE 15A 50V POWERDI5 **
Win Source:
DIODE SBR 50V 15A POWERDI5
针脚数 3
正向电压 520mV @15A
反向恢复时间 5 ns
正向电流 15 A
最大正向浪涌电流(Ifsm) 256 A
正向电压Max 520 mV
正向电流Max 15 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3
封装 POWERDI-5
高度 1.1 mm
封装 POWERDI-5
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
