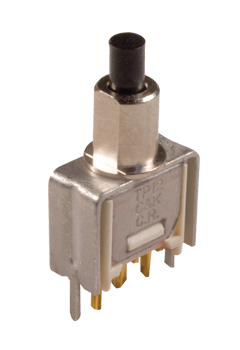

Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole
按钮 SPDT 标准 面板安装,后部
立创商城:
TP12SHCBE
得捷:
SWITCH PUSH SPDT 0.4VA 20V
贸泽:
Pushbutton Switches PUSHBUTTON SWITCH
艾睿:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Bulk
Allied Electronics:
Switch Push Button ON Mom SPDT Round Plunger 20VAC
Chip1Stop:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through H
Verical:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Panel Mount/Through Hole PC Pins Bulk
MASTER:
Tiny Pushbutton Switches
Online Components:
Tiny Pushbutton Switches
Electro Sonic:
Tiny Pushbutton Switches
额定电压DC 20 V
额定电压AC 20 V
排数 1
额定功率 0.4 VA
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 18.17 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 30000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TP12SHCBE C&K Components | 当前型号 | 当前型号 |
TPC11FGPC004 泰科 | 功能相似 | TP12SHCBE和TPC11FGPC004的区别 |
1825098-5 泰科 | 功能相似 | TP12SHCBE和1825098-5的区别 |
