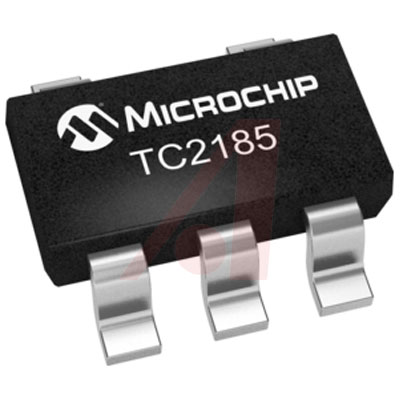

LDO Regulator Pos 5V 0.15A 5Pin SOT-23A T/R
PMIC - 稳压器 - 线性 输出 150mA SOT-23-5
得捷:
IC REG LINEAR 5V 150MA SOT23-5
立创商城:
TC2185-5.0VCTTR
艾睿:
Having trouble maintaining a steady voltage? This LDO TC2185-5.0VCTTR linear regulator from Microchip Technology will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.09@100mA|0.14@150mA V. It has an overall accuracy of ±0.4 %. This device has a maximum power dissipation of 318 mW. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Using the part will provide the power your application needs by requiring a voltage only of 2.7 V and not exceeding a voltage of 6 V. With a fixed output that has a voltage of 5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.43%Typ and line regulation of 0.05%Typ. Its maximum power dissipation is 318 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 0.14@100mA|0.21@150mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Allied Electronics:
150mA LDO with Shutdown & V REF BYPASS, TC1185 upgrade
安富利:
LDO Regulator Pos 5V 0.15A 5-Pin SOT-23A T/R
Win Source:
IC REG LINEAR 5V 150MA SOT23-5 / Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
输出接口数 1
输入电压DC 2.70V min
输出电压 5 V
输出电流 150 mA
耗散功率 318 mW
静态电流 55.0 µA
输出电容类型 Ceramic
跌落电压 0.14V @150mA
输入电压Max 6 V
输入电压Min 2.7 V
输出电压Min 5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 318 mW
精度 ±0.4 %
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
