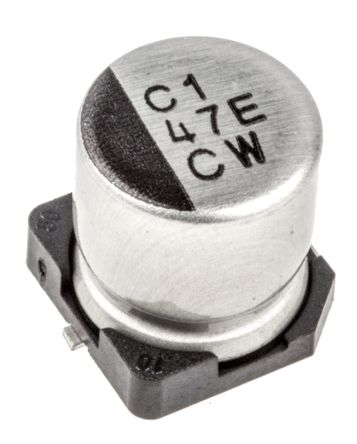

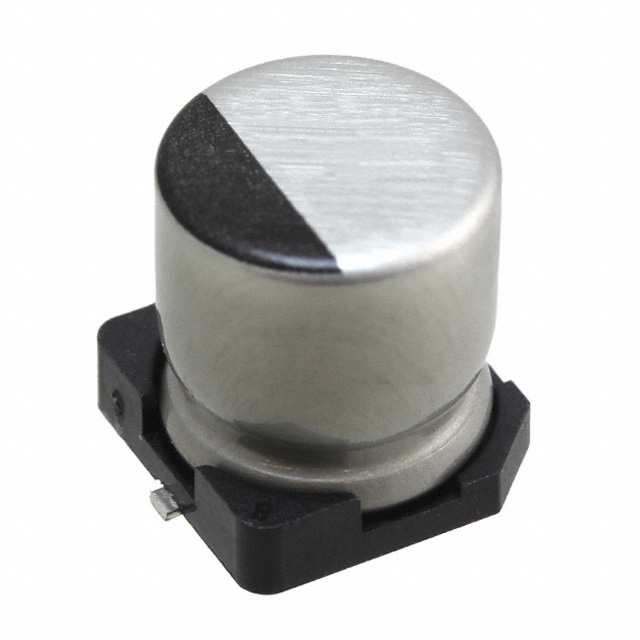

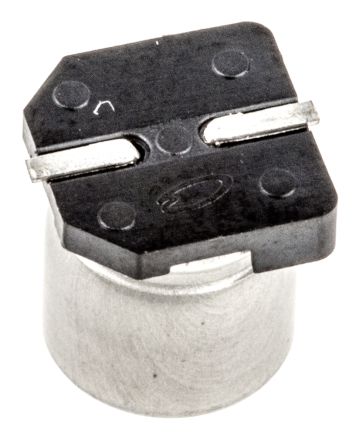

UCW1E470MCL1GS

CW 系列低阻抗CW 铝电解电容器 片式，负载寿命：105°C 时 7000 小时 低阻抗温度范围高达 +105°C 适用于自动安装机器，用输送带送料 ### 表面安装 105°C 系列

CW 系列低阻抗

CW 铝电解器

片式，负载寿命：105°C 时 7000 小时

低阻抗温度范围高达 +105°C

适用于自动安装机器，用输送带送料

得捷:
CAP ALUM 47UF 20% 25V SMD

欧时:
Nichicon 铝电解电容器 CW 系列 25V dc 47μF 表面安装器件 UCW1E470MCL1GS, ±20%容差, 最高+105°C

立创商城:
47uF ±20% 25V

艾睿:
Use this relatively high equivalent series resistance electrolytic UCW1E470MCL1GS aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 11.75@2Min μA. This product is 6.2 mm tall with a diameter of 8 mm. Its capacitance value is 47uF.

Allied Electronics:
47uF 25 V dc Aluminium Electrolytic Capacitor; CW Series 7000h 6.3 Dia. x 7mm

TME:

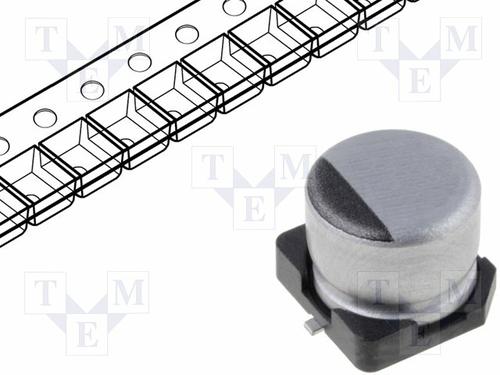

Capacitor: electrolytic; low impedance; SMD; 47uF; 25VDC; Ø6.3x7mm

Verical:
Cap Aluminum Lytic 47uF 25V 20% 6.3 X 7mm SMD 140mA 7000h 105C Automotive T/R

Newark:
# NICHICON  UCW1E470MCL1GS  SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 47 µF, 25 V, CW Series
