UPM1E472MHD

PM 系列 4700 uF 25 V 20 % 通孔 径向 铝 电解电容

4700µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

立创商城:
4700uF ±20% 25V

得捷:
CAP ALUM 4700UF 20% 25V RADIAL

艾睿:

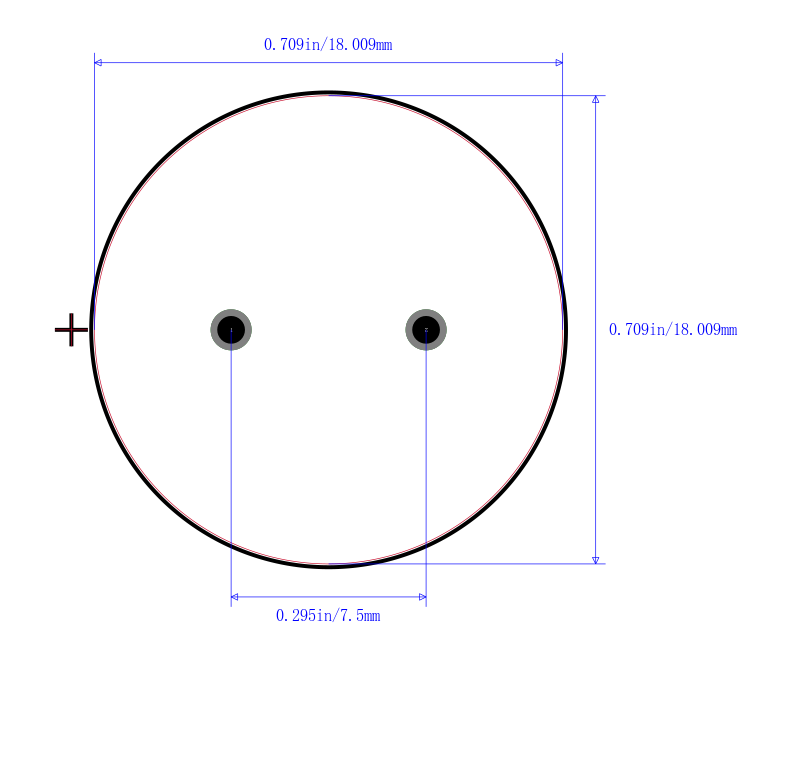

Use this relatively high equivalent series resistance electrolytic UPM1E472MHD aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. This product is 40 mm tall with a diameter of 18 mm. Its leakage current is 3525@1Min μA. The UPM1E472MHD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 4700uF. It has a tolerance of 20%.

安富利:
Cap Aluminum 4700uF 25V 20% 18 X 40mm Radial 7.5mm 2660mA 5000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 4700uF 25V 20% 18 X 40mm Radial 7.5mm 2660mA 5000h 105℃ Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 4700uF; 25VDC; ±20%

Verical:
Cap Aluminum Lytic 4700uF 25V 20% 18 X 40mm Radial 7.5mm 2660mA 5000h 105C Bulk
