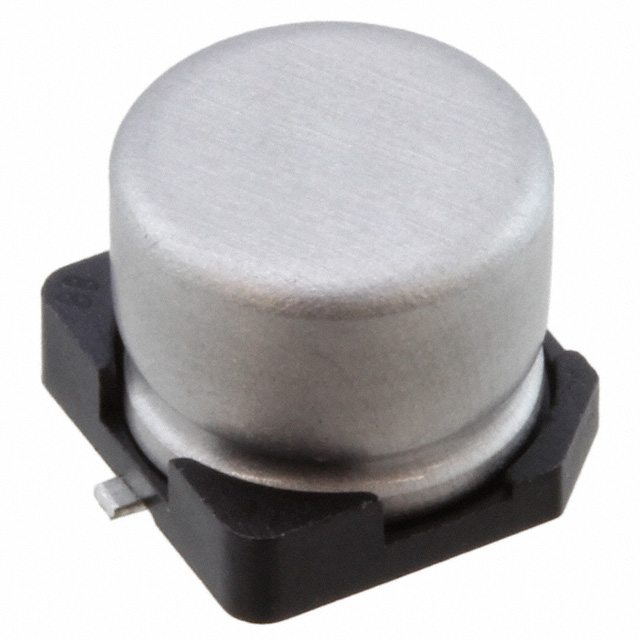

UWP1H4R7MCL1GB

4.7uF ±20% 50V Φ6.3mm 5.4mm

4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C

得捷:
CAP ALUM 4.7UF 20% 50V SMD

艾睿:
Choose this electrolytic UWP1H4R7MCL1GB aluminum capacitor from Nichicon for its relatively high ESR. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. Its capacitance value is 4.7uF. Its leakage current is 3@2Min μA. This product is 5.8 mm tall with a diameter of 5 mm.

安富利:
Cap Aluminum 4.7uF 50V 20% 6.3 X 5.4mm SMD 20mA 1000h 85°C T/R

Chip1Stop:
Cap Aluminum Lytic 4.7uF 50V 20% 6.3 X 5.4mm SMD 85mA 2000h 85℃ T/R

Verical:
Cap Aluminum Lytic 4.7uF 50V 20% 6.3 X 5.4mm SMD 20mA 1000h 85C T/R
