UHC1V101MPD

HC 系列 100 uF 35 V 20 % 通孔 径向 铝电解电容

100µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

立创商城:
100uF ±20% 35V

得捷:
CAP ALUM 100UF 20% 35V RADIAL

艾睿:

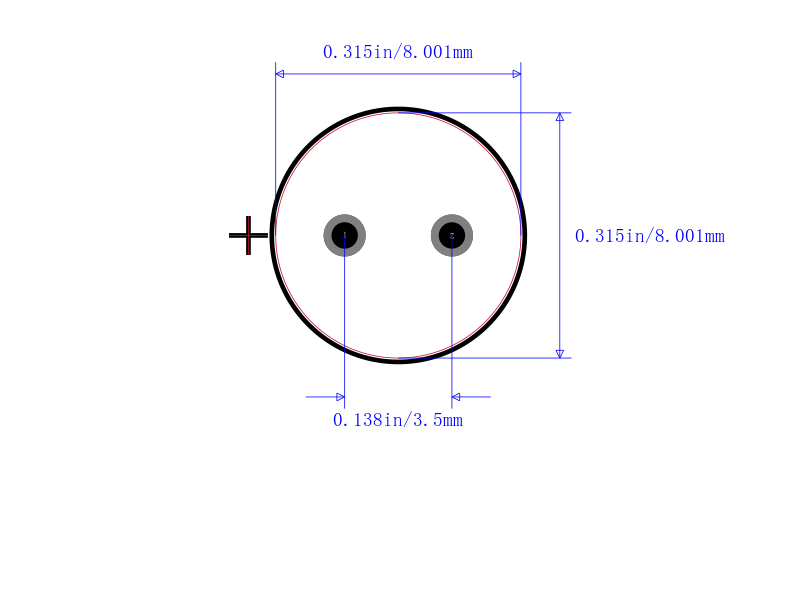

This electrolytic UHC1V101MPD aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UHC1V101MPD aluminum electrolytic capacitor has a radial termination style. This product is 11.5 mm tall with a diameter of 8 mm. This part has a lead diameter of 0.8 mm and a pitch of 3.5 mm. Its capacitance value is 100uF. It has a tolerance of 20%. Its leakage current is 3@2Min μA.

安富利:
Cap Aluminum 100uF 35V 20% 8 X 11.5mm Radial 3.5mm 910mA 2000 hr 105°C Bulk
