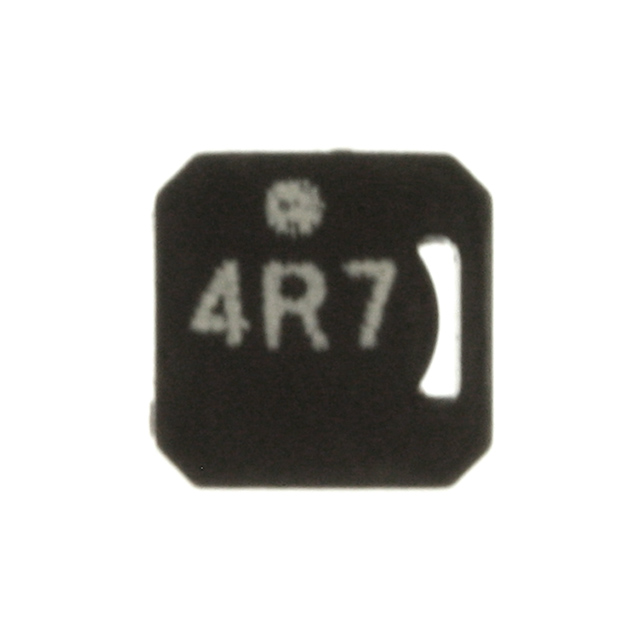

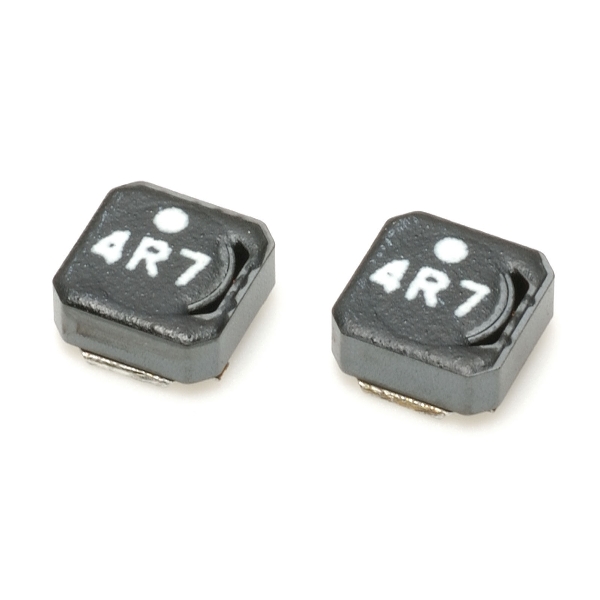

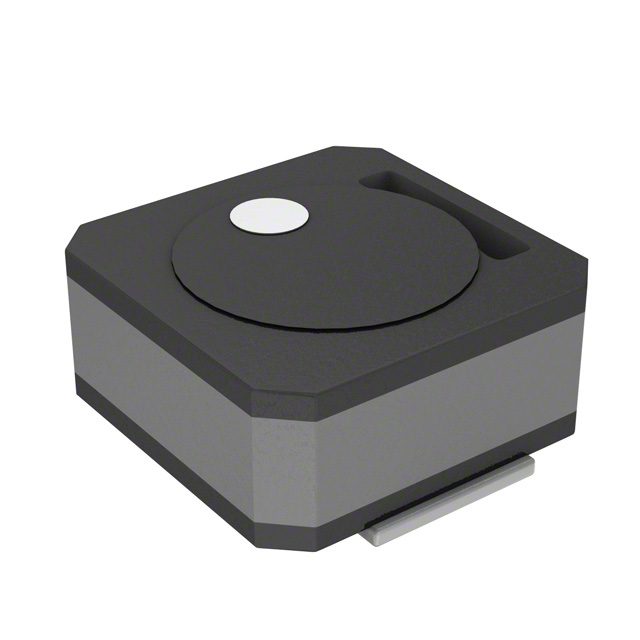

VLCF4020T-4R7N1R2

TDK  VLCF4020T-4R7N1R2  表面贴装功率电感器, VLCF系列, 4.7 µH, ± 30%, 绕线, 0.098 ohm, 1.71 A

固定器

得捷:
FIXED IND 4.7UH 1.24A 98MOHM SMD

欧时:
### VLCF4020 系列磁性屏蔽线绕扼流圈高磁屏蔽结构 通用便携式直流到直流变换器线路 测试频率 = 100 kHz ### TDK 非标准 SMT 电感器（扼流圈）

立创商城:
4.7uH ±30% 1.24A 98mΩ

e络盟:

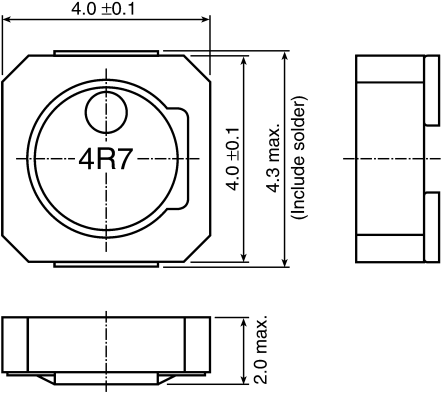

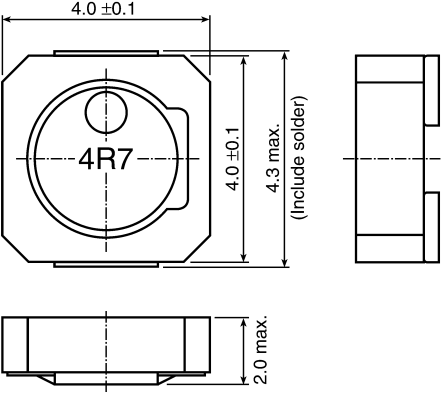

功率电感SMD, 4.7 µH, 1.71 A, 绕线, 1.24 A, VLCF系列, 4.3mm x 4mm x 2mm

艾睿:
This power VLCF4020T-4R7N1R2 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 1.71Typ A with a maximum resistance of 98m Ohm. It has an inductance of 4.7u H. Its test frequency is 100K Hz. This product is 4.1 mm long, 2 mm tall and 4.1 mm deep. This device is made with wirewound technology.

安富利:
Ind Power Shielded Wirewound 4.7uH 30% 100KHz 1.71A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 1.71A 98mOhm DCR 1515 Blister T/R

Verical:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 1.71A 0.098Ohm DCR 1515 T/R

Newark:
# TDK  VLCF4020T-4R7N1R2  Surface Mount Power Inductor, VLCF Series, 4.7 µH, 1.71 A, 1.24 A, Wirewound, 0.098 ohm

儒卓力:
**VLCF4020 4,7uH 1240mA 30% WWT **

MASTER:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 1.71A 98mOhm DCR 1515 T/R

Online Components:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 1.71A 98mOhm DCR 1515 T/R

Electro Sonic:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 1.71A 98mOhm DCR 1515 T/R
