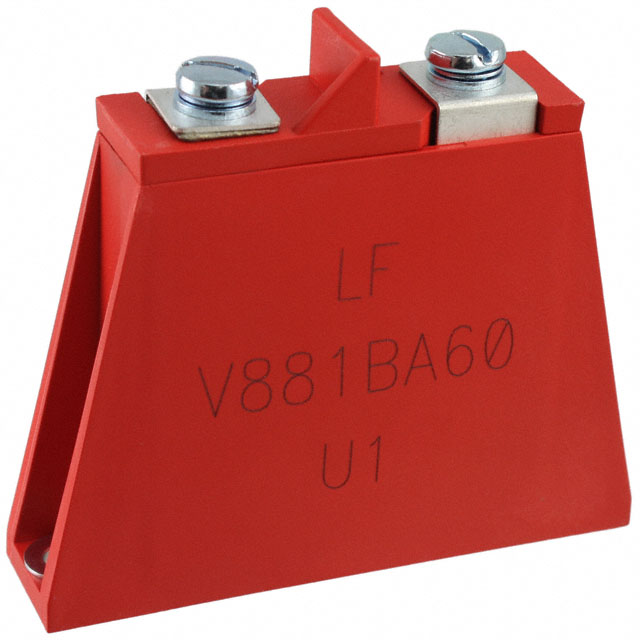

V881BA60

压敏电阻产品 - 高能工业 Varistor Products - High Energy Industrial

变阻器 电路 底座安装 盒装圆片

得捷:
VARISTOR 1.5KV 70KA ENCASED DISC

立创商城:
V881BA60

贸泽:
压敏电阻 1500V 70kA 2700pF

艾睿:
When different voltages are applied to this V881BA60 MOV from Littelfuse will change resistance. This device&s;s clamping current is 200 A and clamping voltage is 2340 V. Its maximum surge current is 70000 A. This part has a pitch of 40 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This device utilizes metal oxide technology. Its capacitance value is 0.0027uF. The maximum AC voltage rating is 880 VAC and the maximum DC voltage rating is 1150 VDC. This varistor has a voltage of 1650 V. This product is 100 mm long, 95 mm tall and 23.5 mm deep.

Allied Electronics:

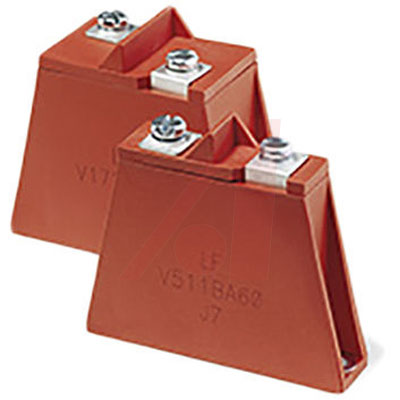

BA Series Metal Oxide Varistor 2.7nF, Clamping 2340V, Varistor 1650V

Chip1Stop:
Var MOV 880VAC/1150VDC 70000A 1650V Bolt-Down

Verical:
Var MOV 880VAC/1150VDC 70000A 1500V Bolt Down Screw

Newark:
# LITTELFUSE  V881BA60  TVS Varistor, MOV, 880 V, 1.15 kV, BA Series, 2340 kV, Disc 60mm, Metal Oxide Varistor MOV
