连接器 FFC & FPC连接器 .5mm Rotary BackLock SMT Dual 26P 编带
26 位置 FPC 触头,上和下 0.020"(0.50mm) 表面贴装,直角
得捷:
CONN FPC 26POS 0.5MM R/A
立创商城:
0.5mm P数:26 双侧触点/上下接
艾睿:

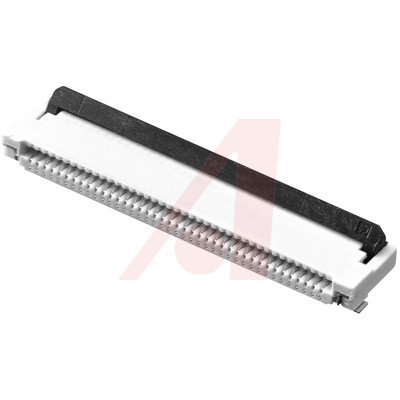

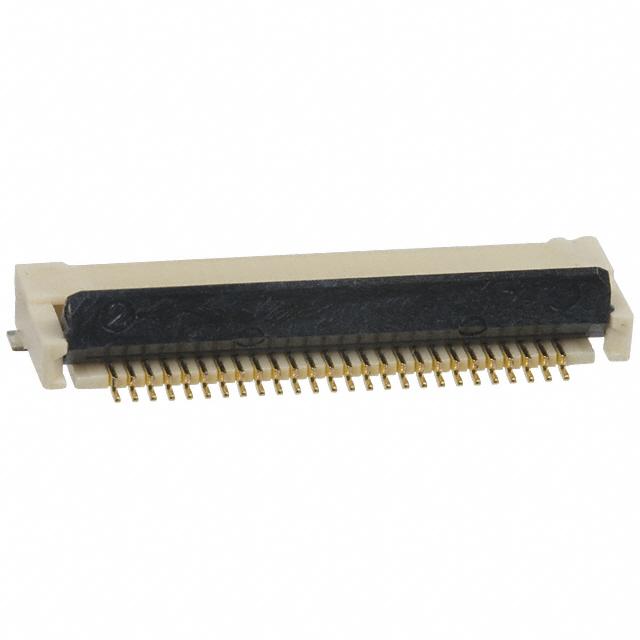

Design your electronic device with FFC technology by implementing this fpc connector XF2M-2615-1A flexible flat cable from Omron. It has a right angle body orientation. Its pitch is 0.5 mm. This socket type connector&s;s 26 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 50 VDC|50VAC. This is a 1-row connector. This device has a maximum current rating of 0.5 A. XF2M-2615-1A is housed in natural liquid crystal polymer. This product is 17.1 mm long, 2.1 mm tall and 6.2 mm deep. It uses the solder termination method. This flexible flat cable has an operating temperature of -30 to 85 °C.
Allied Electronics:
FPC Connector Full Reel Only
Chip1Stop:
Conn FPC Connector SKT 26 POS 0.5mm Solder RA SMD Reel
Verical:
Conn FPC Connector SKT 26 POS 0.5mm Solder RA SMD Reel
MASTER:
Conn FPC Connector SKT 26 POS 0.5mm Solder RA SMD Reel
Online Components:
Conn FPC Connector SKT 26 POS 0.5mm Solder RA SMD Reel
Electro Sonic:
Conn FPC Connector SKT 26 POS 0.5mm Solder RA SMD Reel
触点数 26
极性 Female
触点电镀 Gold
额定电压DC 50.0 V
额定电流 500 mA
绝缘电阻 100 MΩ
排数 1
针脚数 26
拔插次数 20
额定电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 50 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
引脚数 26
封装 SMD
引脚间距 500 µm
长度 17.1 mm
宽度 5.9 mm
高度 2.1 mm
封装 SMD
引脚间距 500 µm
外壳颜色 Natural
颜色 Natural
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
外壳材质 Plastic
产品生命周期 Last Time Buy
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
