ZXTN2031F 系列 NPN 5 A 50 V 表面贴装 硅 中等功率 晶体管 - SOT-23-3
Zetex brings you the solution to your high-voltage BJT needs with their NPN general purpose bipolar junction transistor. This bipolar junction transistor"s maximum emitter base voltage is 7 V. Its maximum power dissipation is 1560 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 50 V and a maximum emitter base voltage of 7 V.
频率 125 MHz
额定电压DC 50.0 V
额定电流 5.00 A
针脚数 3
极性 NPN
耗散功率 1.2 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 5A
最小电流放大倍数hFE 200 @500mA, 2V
额定功率Max 1.2 W
直流电流增益hFE 350
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1560 mW
安装方式 Surface Mount
引脚数 3

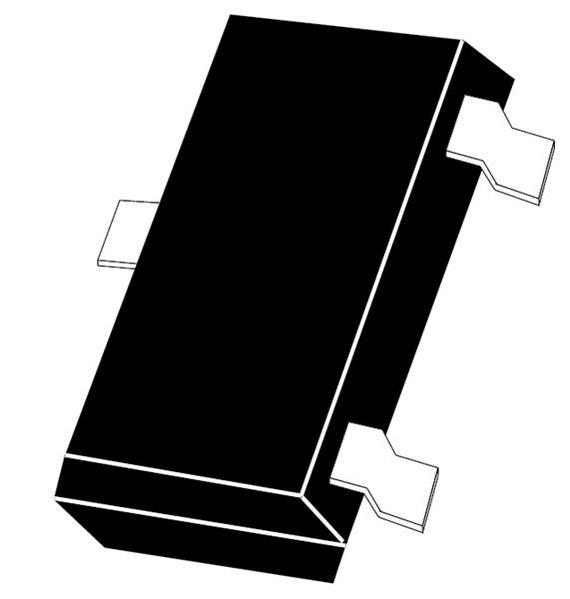

封装 SOT-23-3
封装 SOT-23-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 军用与航空, 车用, 电机驱动与控制, 国防, 计算机和计算机周边, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
