双极晶体管 - 双极结型晶体管BJT Dual 12V NPN HighG
- 双极 BJT - 阵列 2 NPN(双) 25V 5A 180MHz 2.75W 表面贴装型 SM-8
得捷:

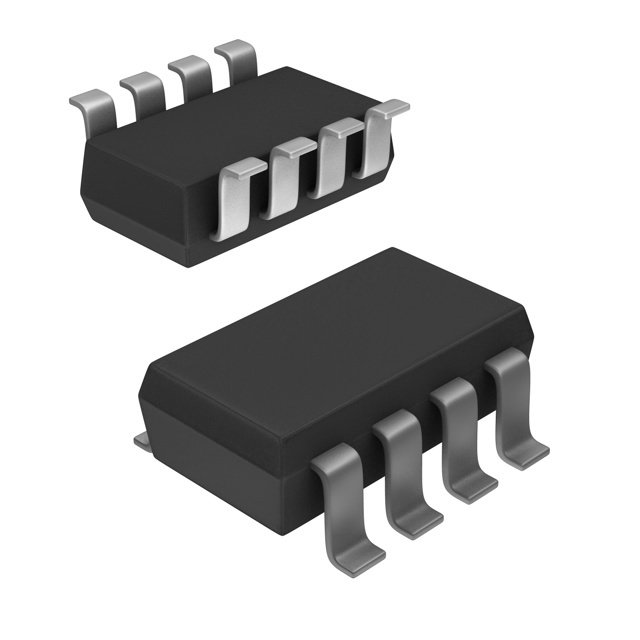

TRANS 2NPN 25V 5A SM8
贸泽:
双极晶体管 - 双极结型晶体管BJT Dual 12V NPN HighG
艾睿:
Do you require a transistor in your circuit operating in the high-voltage range? This NPN ZDT1049TA general purpose bipolar junction transistor, developed by Diodes Zetex, is your solution. This bipolar junction transistor&s;s maximum emitter base voltage is 5 V. Its maximum power dissipation is 2750 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a maximum collector emitter voltage of 25 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C.
Allied Electronics:
Dual NPN Power High Gain Transistor SM8
安富利:
Trans GP BJT NPN 25V 5A 8-Pin SM8 T/R
Chip1Stop:
Trans GP BJT NPN 25V 5A 8-Pin SM8 T/R
Win Source:
TRANS 2NPN 25V 5A SM8
DeviceMart:
TRANSISTOR NPN DUAL 25V SOT223-8
额定电压DC 25.0 V
额定电流 5.00 A
极性 NPN
耗散功率 2.75 W
击穿电压集电极-发射极 25 V
集电极最大允许电流 5A
最小电流放大倍数hFE 300 @1A, 2V
最大电流放大倍数hFE 250
额定功率Max 2.75 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2750 mW
安装方式 Surface Mount
引脚数 8
封装 SOT-223-8
长度 6.7 mm
宽度 3.7 mm
高度 1.6 mm
封装 SOT-223-8
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
