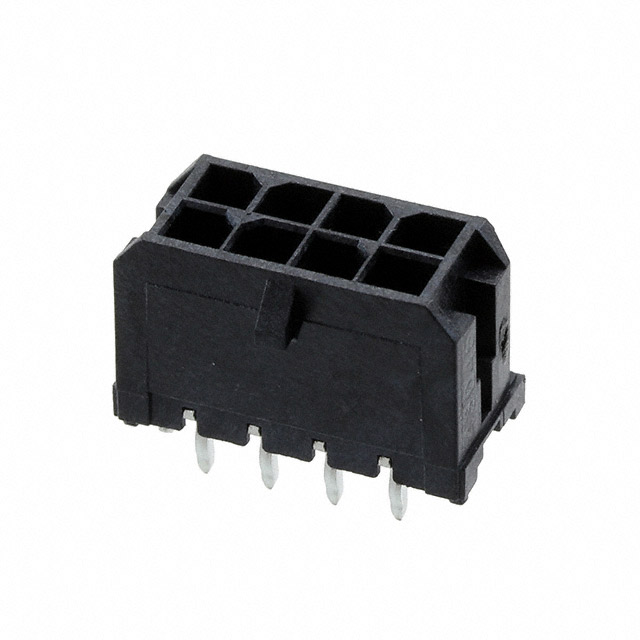

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，垂直，用压入金属固定夹， 8电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Vertical, with Press-fit Metal Retention Clip, 8 Circuits
Connector Header Through Hole 8 position 0.118" 3.00mm
得捷:
CONN HEADER VERT 8POS 3MM
艾睿:
As an added safety precaution, the wire to board 0430450824 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 8 contacts that are made out of brass alloy and plated with tin over nickel. This is a 2-row connector. Its pitch is 3 mm. It has a maximum voltage rating of 600 V. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. 0430450824 is housed in black liquid crystal polymer. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 16.15 mm long, 9.91 mm tall and 8.77 mm deep.
安富利:
Conn Wire to Board HDR 8 POS 3mm Solder ST Thru-Hole Tray
Verical:
PCB Connector HDR 8 POS 3mm Solder ST Thru-Hole 8 Terminal 1 Port
