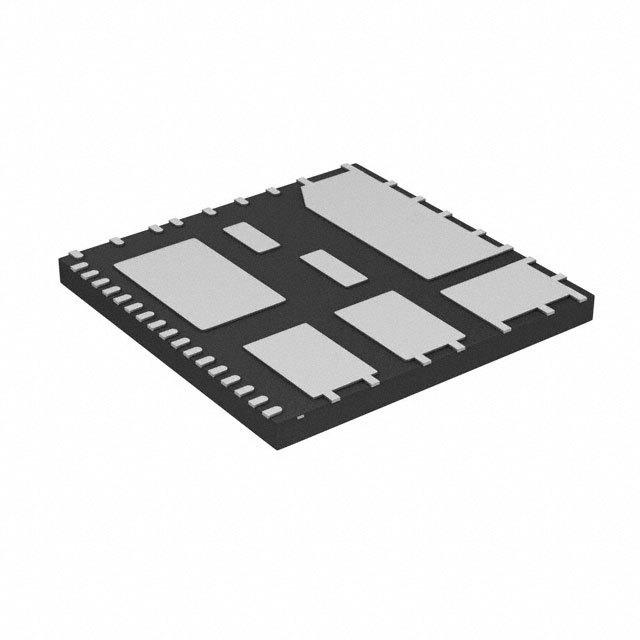

iMOTION Motion Controller Module IC, 3-Phase, 500V/3A and 600V HVIC, 40Pin PQFN
Summary of Features:
-
.
-
Complete 250V - 500V 3-phase inverter system in one chip
-
.
-
Permanent Magnet Sinusoidal Motors Control by Hall sensors
-
.
-
Three low cost Hall elements required
-
.
-
High efficiency control by quadratic phase advance curve
-
.
-
Internal clock based on external RC
-
.
-
15V single power supply
-
.
-
3.3V Integrated Voltage Regulator
-
.
-
Multiple Integrated protection features:
-
.
-
Dynamic overcurrent, Overtemperature, Overspeed, Rotor lock, Undervoltage lockout
-
.
-
Full Three Phase Gate Driver
-
.
-
Integrated Bootstrap Diodes
-
.
-
12x12 mm² PQFN package
Benefits:
-
.
-
Maximum ease-of-use at lowest BOM cost
-
.
-
Integrated controller does not require programming
-
.
-
Simple load curve selection via resistors
-
.
-
Lowest acoustical noise
-
.
-
Support for low cost hall elements
-
.
-
Status reporting output
-
.
-
Very small PCB footprint
-
.
-
No heatsink required
