固定电感器
固定器
得捷:
FIXED IND 1UH 1.8A 60 MOHM SMD
立创商城:
1uH ±20% 60mΩ
艾睿:

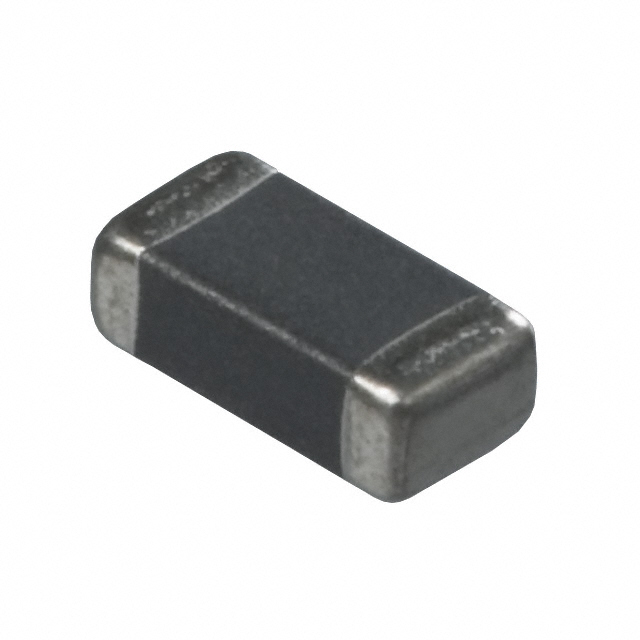

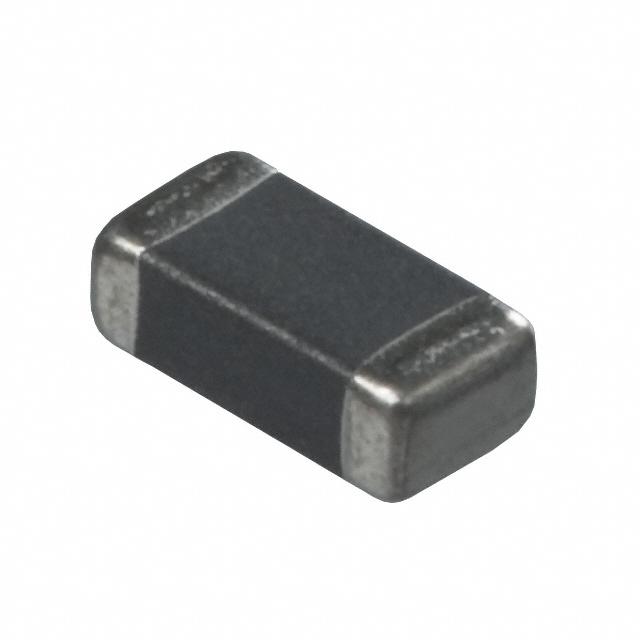

Make any circuit look clean and compact using this power chip LQM32PN1R0MG0L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes multi-layer technology. This SMD inductor has a maximum DC current of 1.8 A with a maximum resistance of 60m Ohm. It has an inductance of 1u H. This product is 3.35 mm long, 1 mm tall and 2.65 mm deep. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 40M Hz. It has a tolerance of 20%.
安富利:
Ind Power Chip Shielded Multi-Layer 1uH 20% 1MHz Ferrite 1.8A 1210 Embossed T/R
Verical:
Inductor Power Chip Shielded Multi-Layer 1uH 20% 1MHz Ferrite 1.8A 0.06Ohm DCR 1210 T/R
Win Source:
FIXED IND 1UH 1.8A 48 MOHM SMD
额定电流 1.8 A
容差 ±20 %
电感 1 µH
自谐频率 40 MHz
产品系列 LQM
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤60 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.06 Ω
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 1 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
