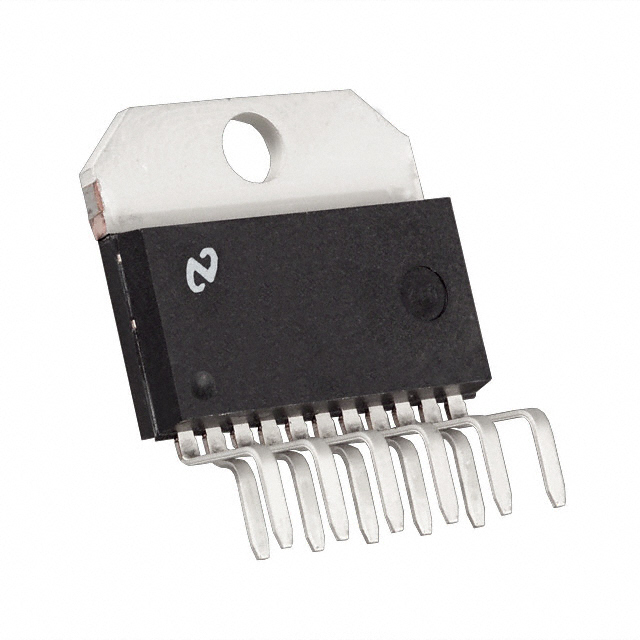

TEXAS INSTRUMENTS LMD18200T 芯片, 半桥 3A 55V
Does your system have a hydraulic pumps and linear actuators? Implementing these h-bridge dc stepper motor driver manufactured by Texas Instruments. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This motor controller has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 12 V and a maximum of 55 V.
电源电压DC 12.0V min
输出接口数 2
输出电压 55 V
输出电流 3 A
通道数 2
针脚数 11
耗散功率 25000 mW
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 25000 mW
电源电压 12V ~ 55V
电源电压Max 55 V
电源电压Min 12 V
安装方式 Through Hole
引脚数 11

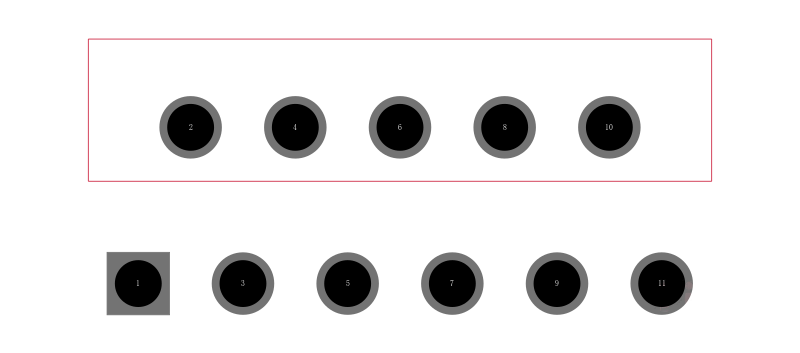

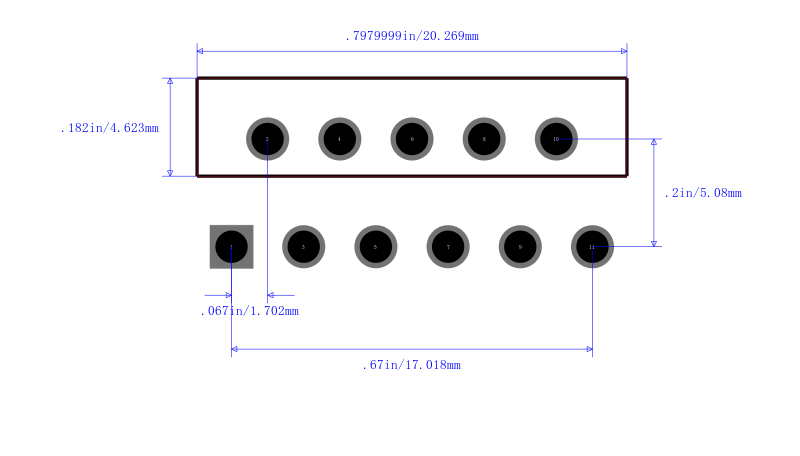

封装 TO-220-11
封装 TO-220-11
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 通用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LMD18200T TI 德州仪器 | 当前型号 | 当前型号 |
LMD18200T/NOPB 德州仪器 | 类似代替 | LMD18200T和LMD18200T/NOPB的区别 |
