Lite-On 0603 Package Chip LEDsThis range of LEDs, from Lite-On, are in the standard 0603 rectangular package. They are flat-top Chip LEDs which are compatible with automatic placement equipment. There are a variety of colour options available and they come with a clear lens type. Features of the 0603 Chip LEDs: \- Standard 0603 package \- Viewing Angle: 130° \- Variety of colours ### 可见光 LED,Lite-On
灯珠
欧时:

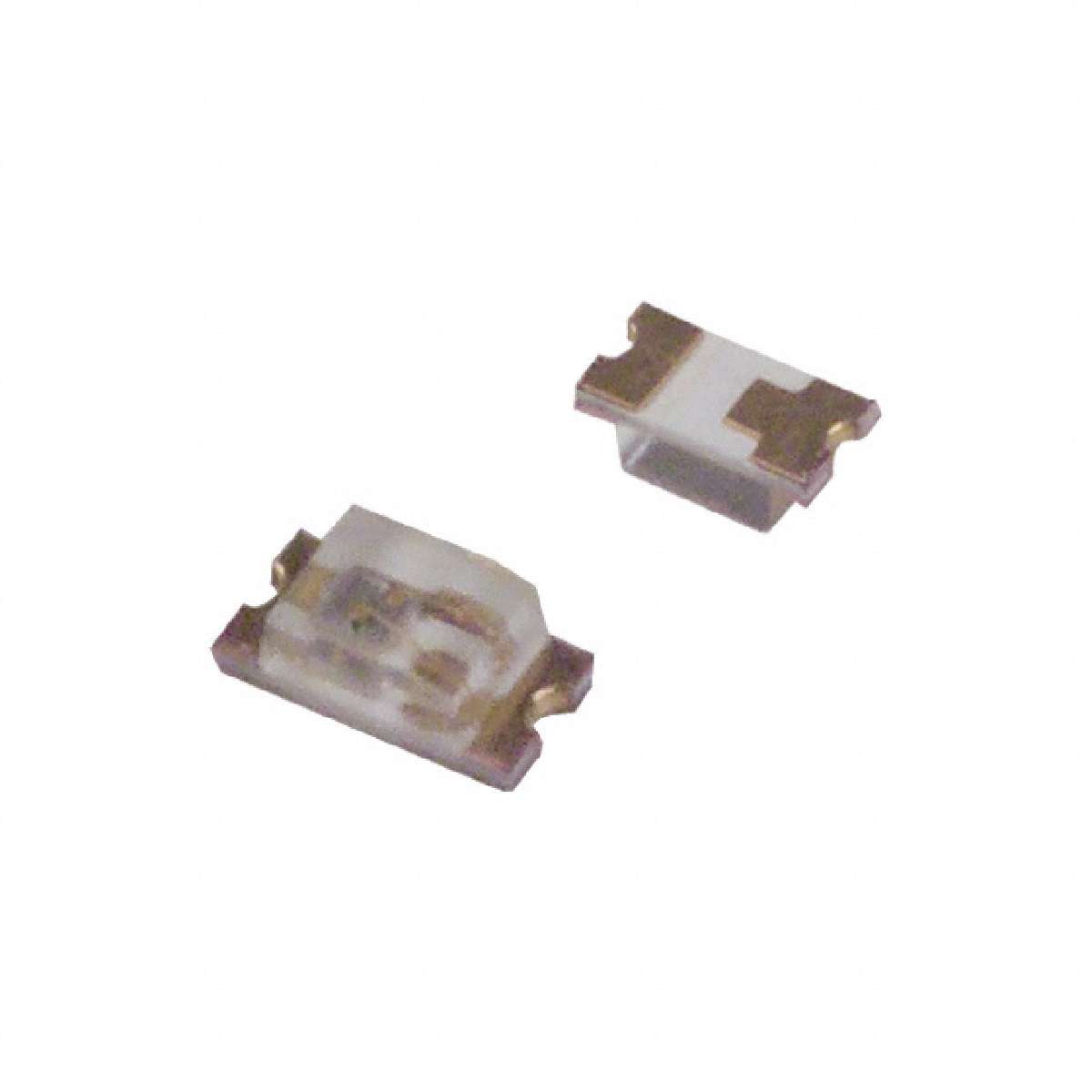

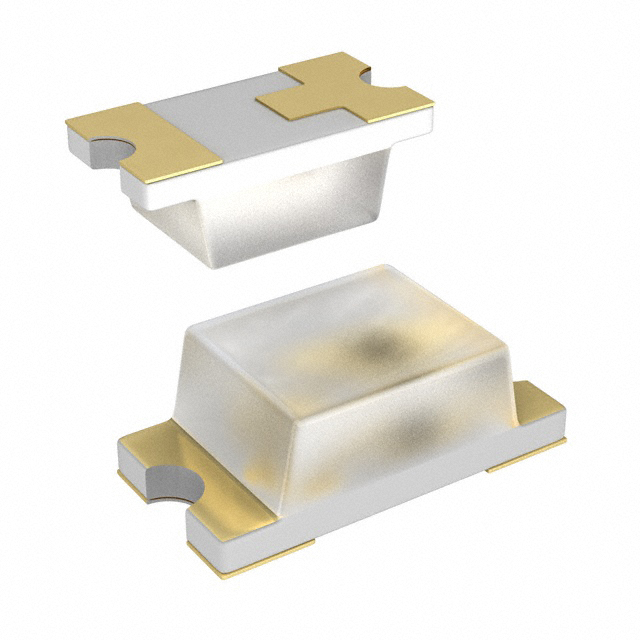

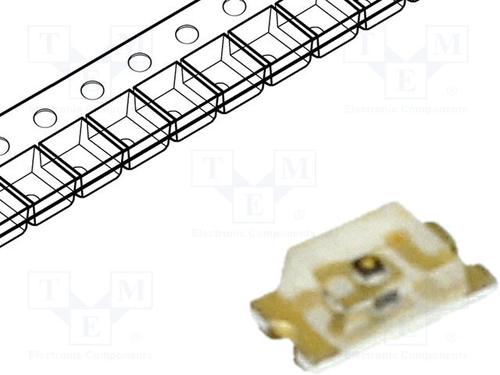

Lite-On 蓝色 LED LTST-C191TBKT, 180 mcd, 3.8 V, 130 °视角, 2 引脚 1608 0603 贴装
得捷:
LED BLUE CLEAR CHIP SMD
立创商城:
蓝灯 465nm~475nm
贸泽:
标准LED-SMD Blue Clear 470nm
艾睿:
LED Low-Power Uni-Color Blue 468nm 2-Pin Chip LED T/R
Jameco:
LED Uni-Color Blue 468nm 2-Pin Chip LED Tape and Reel
Chip1Stop:
LED Uni-Color Blue 468nm 2-Pin Chip LED T/R
TME:
LED; SMD; 0603; blue; 28-180mcd; 1.6x0.8x0.55mm; 130°; 2.8÷3.8V
Verical:
LED Low-Power Uni-Color Blue 468nm 2-Pin Chip LED T/R
儒卓力:
**CHIPLED BLUE CLEAR 0603 **
Win Source:
Blue 470nm LED Indication - Discrete 3.3V 0603 1608 Metric
工作电压 2.8V ~ 3.8V
针脚数 2
正向电压 3.3 V
波长 470 nm
发光强度 30 mcd
视角 130°
透镜样式 Non-Diffused
峰值波长 468 nm
耗散功率 76 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 3.8 V
正向电流Max 20 mA
工作温度Max 80 ℃
工作温度Min 20 ℃
耗散功率Max 76 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.55 mm
封装公制 1608
封装 0603
颜色 Blue
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTST-C191TBKT LiteOn 光宝 | 当前型号 | 当前型号 |
LTST-C190TBKT 光宝 | 类似代替 | LTST-C191TBKT和LTST-C190TBKT的区别 |
VLMB1300-GS08 威世 | 功能相似 | LTST-C191TBKT和VLMB1300-GS08的区别 |
