TWR-S08LL64-KIT

NXP  TWR-S08LL64-KIT.  开发套件, 塔式系统 S08LL64微控制器板

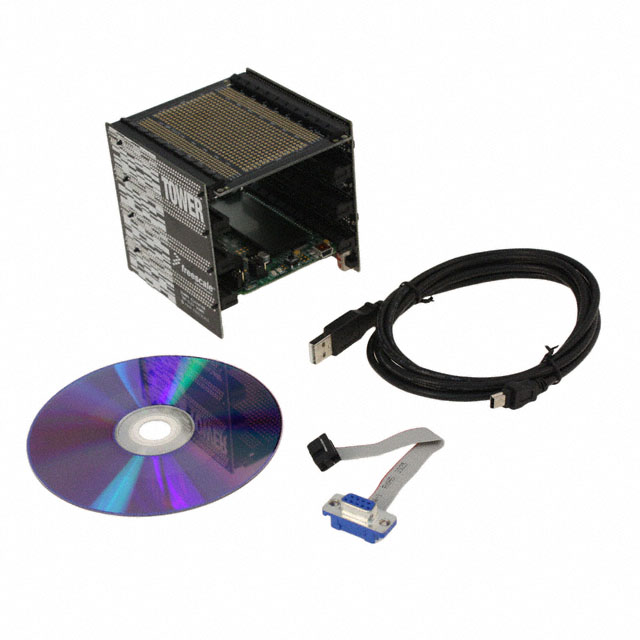

The is a development board for the MC9S08LL64 segment LCD Controller that features a three axis accelerometer ADC input and a 2x28 segment LCD display. The integrated OSBDM allows a designer to communicate with the board and target device using only a USB cable. This module operates as a standalone debug tool and can also be combined and used as part of the modular tower system development platform.

.

MC9S08LL64 MCU

.

three axis accelerometer ADC input to MCU

.

Light sensor with LP filter and op amp

.

Mini-B USB connector

.

One reset push button and four push switches

.

2 x 28 segments LCD display

.

The TWR-S08LH64 board contains a MC9S08LL, an energy efficient product solution
