12-401-DB36

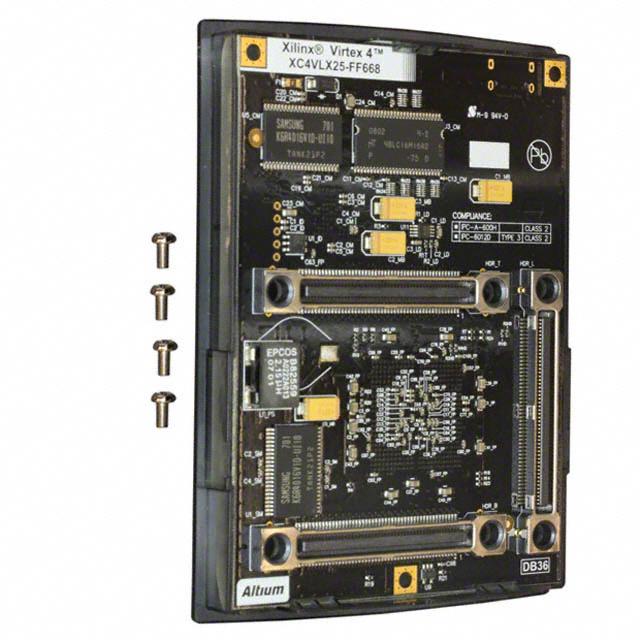

ALTIUM 12-401-DB36 Xilinx Virtex-4 Daughter Board, Range of On Board Memories, SPI/I2C Bus Interface, JTAG

is a Xilinx Virtex-4 daughter board which provides an XC4VLX25-10FF668C device, as well as a range of on board memories available for use by a design running within that device.

.

1 wire memory device used to store board ID and related information

.

Interface to resources on the NB2DSK01 motherboard and plugged in peripheral boards

.

SPI bus interface

.

I2C bus interface

.

1 wire bus interface

.

JTAG, power and additional control lines from the motherboard
