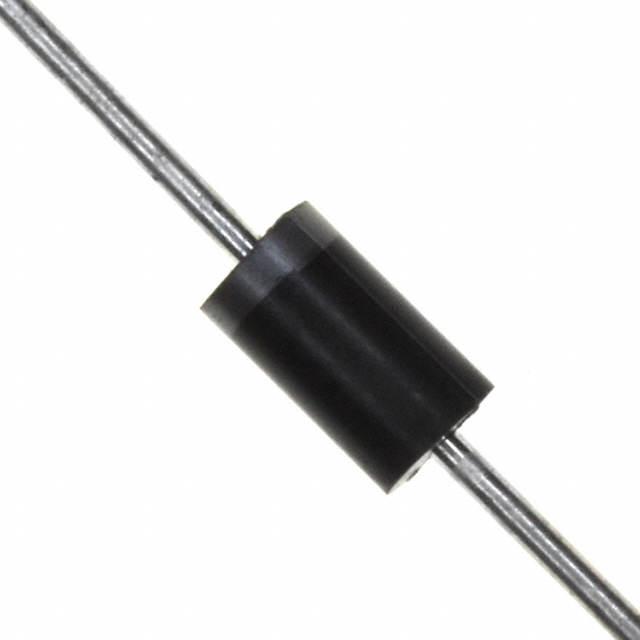

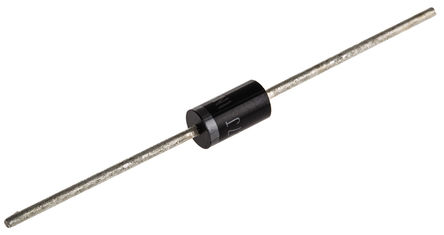

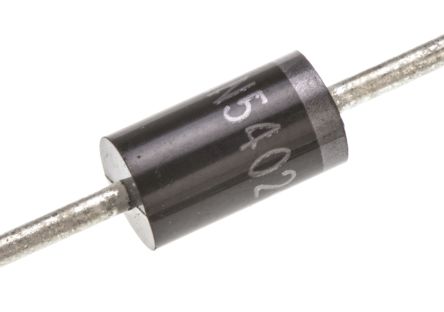

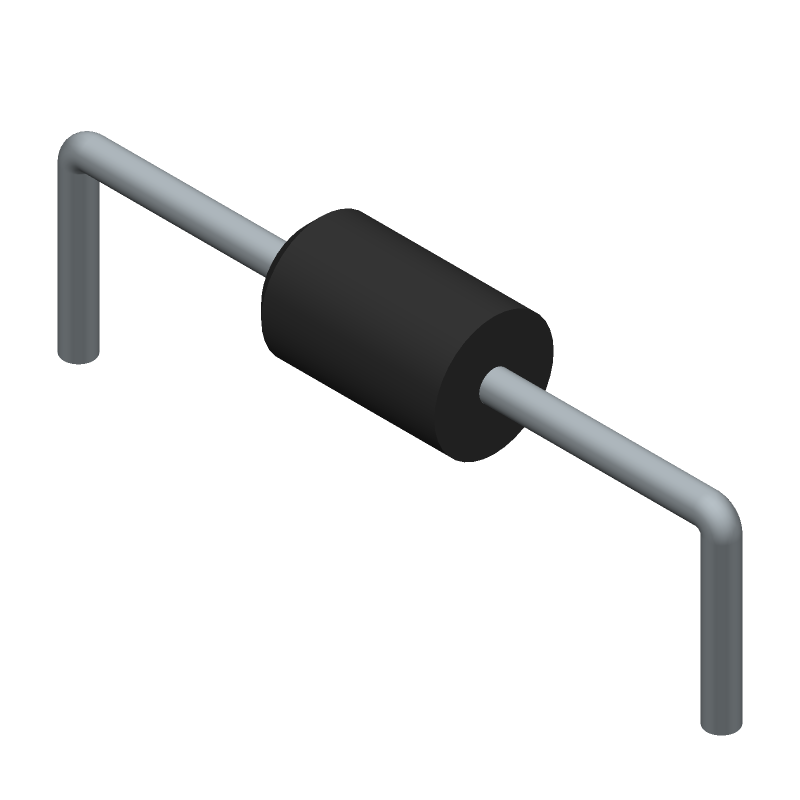

VISHAY 1N5402-E3/54 标准二极管, 3A, 200V, DO-201AD, 整卷
**Features:**
* Low Forward Voltage Drop
* Low Leakage Current
* High Forward Surge Capability
* Solder Dip 260°C, 40 s
* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
**Applications:**
For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application.
得捷:
DIODE GEN PURP 200V 3A DO201AD
贸泽:
整流器 3.0 Amp 200 Volt
艾睿:
Diode 200V 3A 2-Pin DO-201AD T/R
Allied Electronics:
1N5402-E3/54, Diode, 200V 3A, 2-Pin DO-201AD
富昌:
1N5402 系列 200 V 3 A 通孔 通用 塑料 整流器-DO-201AD
额定电压DC 200 V
额定电流 3.00 A
电容 30.0 pF
输出电流 ≤3.00 A
针脚数 2
正向电压 1.2 V
极性 Standard
热阻 20℃/W RθJA
正向电流 3 A
最大正向浪涌电流(Ifsm) 200 A
正向电压Max 1.2 V
正向电流Max 3 A
工作温度Max 150 ℃
工作温度Min -50 ℃
安装方式 Through Hole
引脚数 2
封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 5.3 mm
封装 DO-201AD
工作温度 50℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5402-E3/54 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
1N5402-E3/51 威世 | 类似代替 | 1N5402-E3/54和1N5402-E3/51的区别 |
1N5402/54 威世 | 类似代替 | 1N5402-E3/54和1N5402/54的区别 |
1N5402RLG 安森美 | 功能相似 | 1N5402-E3/54和1N5402RLG的区别 |
