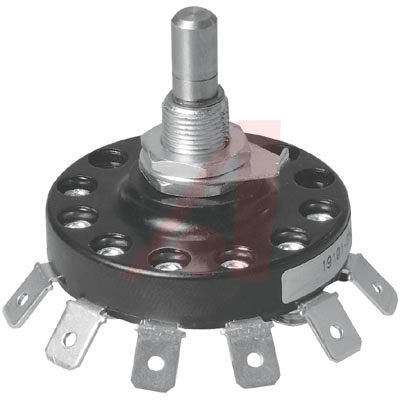

GRAYHILL 19101-05UL 旋转开关, SPST
UL Recognized. Single-pole, single-deck units have 2 to 11 positions plus common, with 30 deg. indexing. Available in solder-lug terminal with 0.125 in. wire hole or Faston terminal with 0.080 in. wire hole. 15 A, 120 VAC, non-inductive load.
贸泽:
旋钮开关 Rotary Switch Faston Terminals 5 Pos UL
e络盟:
开关, 旋转, SP5T, 15A, 120V
艾睿:
This 19101-05UL rotary switch made from Grayhill is great for a wide variety of applications when a two position switch does not cut it. This device has a maximum current rating of 15 A @ 120VAC. It has a SP5T configuration. The 19101-05UL rotary limit switch has a faston termination style. The maximum AC voltage rating is 220 VAC and the maximum DC voltage rating is 120 VDC. This product is 57.91 mm long, 46.36 mm tall and 57.91 mm deep.
Allied Electronics:
Switch, Rotary; 5pos; 15A 120VAC; 0.375in. Bsh; 0.250 In. Quick connect tabs
安富利:
Switch Rotary SP5T 5 Flatted Shaft Faston 15A 220VAC 120VDC
富昌:
19 Series Standard 1 Deck SP 5 Position Panel Mount Quick Connect Rotary Switch
Chip1Stop:
Switch Rotary SP5T 5 Flatted Shaft Faston 15A 220VAC 120VDC
Verical:
Switch Rotary SP5T 5 Flatted Shaft Faston 15A 220VAC 120VDC
Newark:
# GRAYHILL 19101-05UL Rotary Switch, 5 Position, Non Illuminated, 19 Series, 30 °, 15 A, 1 A
MASTER:
Switch Rotary SP5T 5 Flatted Shaft Faston 15A 220VAC 120VDC
Electro Sonic:
Switch Rotary SP5T 5 Flatted Shaft Faston 15A 220VAC 120VDC
