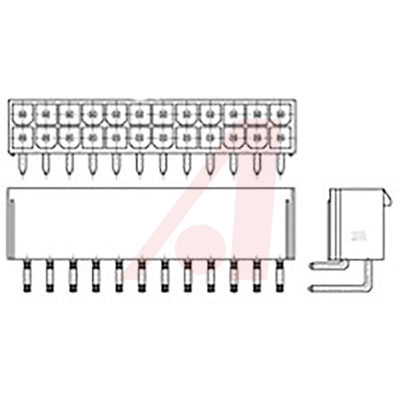

Conn Power HDR 18POS 4.2mm Solder RA Thru-Hole 18 Terminal 1Port Tray
** VAL-U-LOK Double Row Pin Headers**
VAL-U-LOK right angle and vertical double row PCB mount pin headers with a 4.2mm centerline and tin plated brass male pin contacts. These VAL-U-LOK pin headers have an easy mate and unmate design with positve latching and have keying to ensure accurate alignment when mating. In addition these VAL-U-LOK pin header connectors are available with pegs or boardlocks for alignment on the PCB. The housings of these VAL-U-LOK pin headers are made from UL94V-0 or UL94V-2 rated natural nylon. Part numbers X-2029171-X have UL94V-0 housings Part numbers X-1586037-X, X-1586041-X and X-2029170-X have UL94V-2 housings Part numbers X-1586039-X and X-2029172-X have UL94V-2 housings and mounting pegs Part numbers X-1586043-X have UL94V-2 housings and screw mounting Part numbers X-1586038-X and X-1586042-X have UL94V-0 housings Part numbers X-1586040-X and X-2029173-X have UL94V-0 housings and mounting pegs Part numbers X-1586044-X have UL94V-0 housings and screw mounting
触点数 18
触点电镀 Tin
绝缘电阻 1000 MΩ
排数 2
方向 Right Angle
电路数 18
易燃性等级 UL 94 V-0
针脚数 18
拔插次数 50
额定电流Max 9A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 600 VAC
安装方式 Through Hole
外壳颜色 Natural
触点材质 Brass Alloy
工作温度 -40℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tray
制造应用 通用,工业,照明, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
