1503 02

LUMBERG  1503 02  手机音频连接器, 3 触点, 插座, 3.5 mm, 表面安装, 镀银触芯, 金属主体

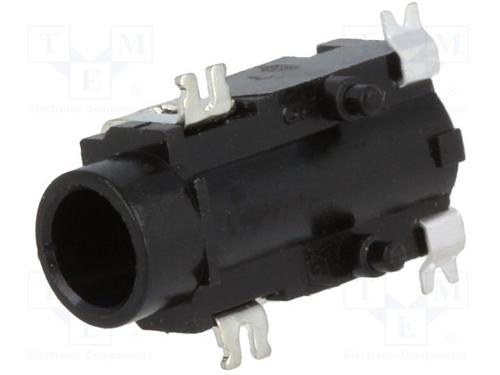

The from is a 3.5mm, 3pole stereo jack socket connector. The angular version jack chassis socket are according to JIS C 6560 JC35J3A standard for printed circuit boards, surface mounting technology SMT and manual soldering only.

.

Rated current of 1A

.

Rated voltage of 34VAC/VDC

.

Insulating body material is polybutylene terephthalate, UL94-HB rated

.

Copper alloy, tin/silver plated contact

.

Mating with 1532 01,KLS 40, KLS 41, KLS 44, WKLS 40 jack plugs

.

Temperature range from -20°C to 70°C
