1551503概述

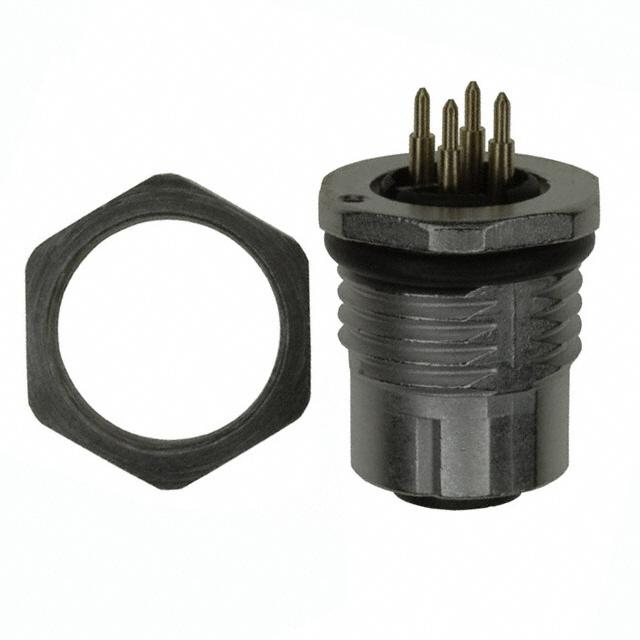

Phoenix Contact 1551503 M12 4 针 母 连接器

Conn Circular F 4 POS Solder ST Thru-Hole 4 Terminal 1 Port


得捷:
CONN RCPT FMALE 4POS GOLD SOLDER


欧时:
1551503 - Phoenix Contact 菲尼克斯 M12 4 针 母 连接器


e络盟:
传感器连接器, 4路, M12, 母, PROFINET SPEEDCON Series, M12, 母, 4路, 焊接插座, 直形面板安装


艾睿:
Conn Circular F 4 POS Solder ST Thru-Hole 4 Terminal 1 Port


Verical:
Conn Circular F 4 POS Solder ST Thru-Hole 4 Terminal 1 Port


Newark:
SENSOR CONNECTOR, M12, RCPT, 4POS


MASTER:
Bus system flush-type socket - Ethernet - 4-pos. - M12 SPEEDCON - D-coded - rear/screw mounting with Pg9 thread - with straight solder connection


Online Components:
Conn Circular F 4 POS Solder ST Thru-Hole 4 Terminal 1 Port


Electro Sonic:
Bus system flush-type socket - Ethernet - 4-pos. - M12 SPEEDCON - D-coded - rear/screw mounting with Pg9 thread - ...


1551503中文资料参数规格
技术参数

触点数 4

极性 Female

触点电镀 Gold

额定电压DC 250 V

额定电流 4 A

针脚数 4

额定电流Max 4 A

额定电压Max 250 V

额定电压 250 V

封装参数

安装方式 Through Hole

外形尺寸

高度 21 mm

物理参数

颜色 Silver

触点材质 Brass

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694020

数据手册
