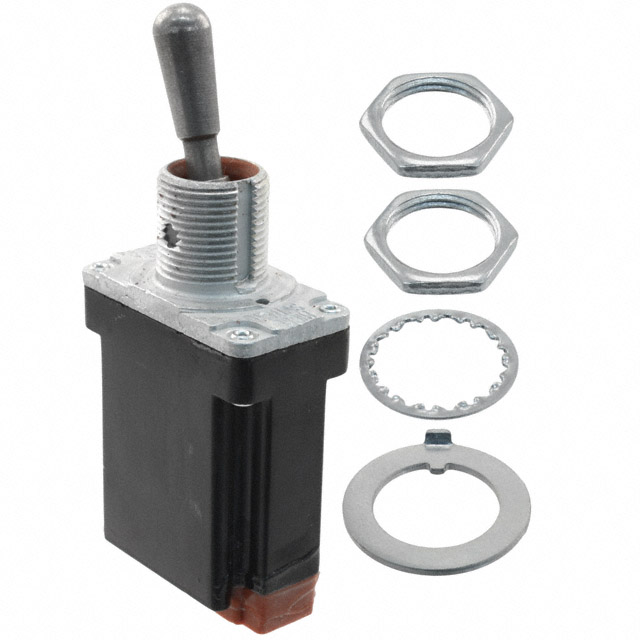

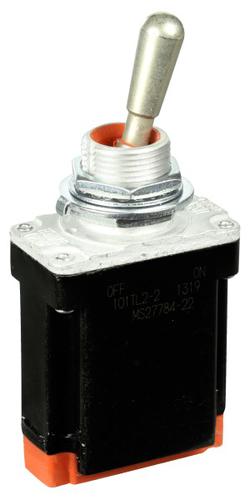

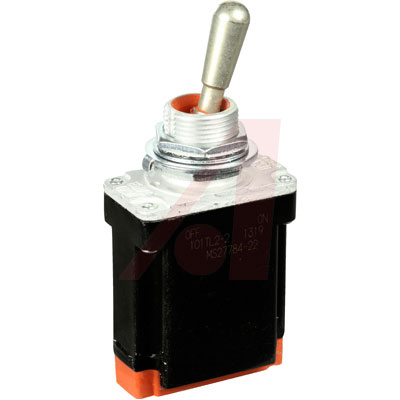

101TL2-2

此图涵盖了所有的项目内容，并且微动开关的财产 THIS DRAWING COVERS A PROPRIETARY ITEM AND IS THE PROPERTY OF MICRO SWITCH

MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 4 A at 28 Vdc, Silver Contacts, Stainless Steel Enclosure, 3 9144 mm [360 in] Lead Wire Termination 22 Gage, Leads Marked with Circuit and Gage, Terminal Guard, -65 °C to 260 °C [-85 °F to 500 °F] Temperature Range, Down to -184 °C [-300 °F] if Wire Leads are Non-Flexing

Product Highlights

Qualified to MIL-S-3950

Environment-proof sealing

1,2, and 4 pole circuitry

Standard and pull-to-unlock levers

2 and 3 position, maintained and momentary toggle action

Temperature range: -85 F to +160 F

Completely sealed switching chamber

Step-design case provides added space between terminals to help prevent shorting

UL recognized, CSA certified

CE approved

Potential Applications:

Industrial machinery and equipment

Military and commercial aviation

Construction equipment

Test instruments

Agricultural machinery

Process control

Medical instrumentation
