间距7.62mm 5位 插座 20A 630V 弯插
Conn Shrouded Header HDR 5 POS 7.62mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 5POS 90DEG 7.62MM
艾睿:

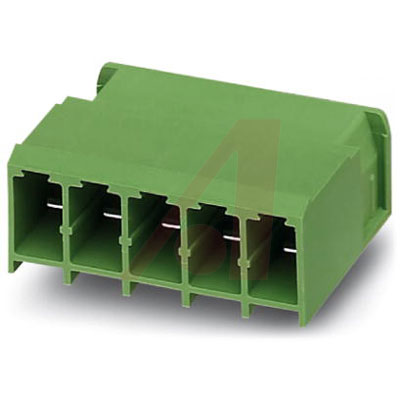

Reduce safety concerns with this shrouded 1804823 header connector from Phoenix Contact which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector has 5 contacts that are plated with tin. It has a right angle body orientation. It has a header type gender. This is a 1-row connector. Its pitch is 7.62 mm. It has a maximum voltage rating of 630 V. This device has a maximum current rating of 20 A. This product is 38.08 mm long, 14.3 mm tall and 29 mm deep. 1804823 is housed in green polyamide. It uses the solder termination method.
Allied Electronics:
Terminal Block HDR 5POS R/A 7.62MM
Verical:
Conn Shrouded Header 4 Sides HDR 5 POS 7.62mm Solder RA Side Entry Thru-Hole
MASTER:
PCB headers - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - number of positions: 5 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 5 m
Online Components:
Conn Shrouded Header HDR 5 POS 7.62mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 20 A - rated voltage III/2: 630 V - nominal cross section: 4 mm² - ...
