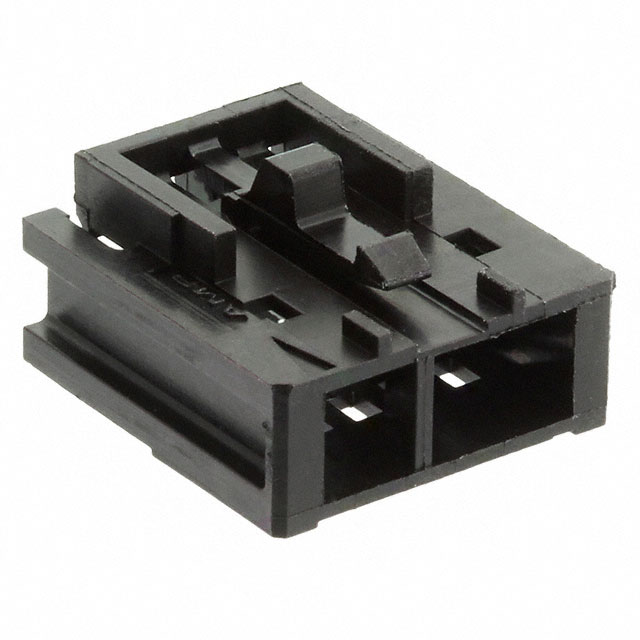

AMP FROM TE CONNECTIVITY 103681-2 连接器配件, Coupling Shroud, AMPMODU MTE Receptacle Assemblies with Guide Ribs
10 MTE COUPLING SHRD DR
Product Highlights
Shroud
Wire Termination Type = Crimp, Insulation Displacement Crimp IDC
Number of Positions = 10
Number of Rows = Dual
2.54 mm Centerline, Matrix
得捷:
CONN SHROUD 10POS DL .100 LATCH
e络盟:
连接器配件, 耦合护套, AMPMODU MTE插座组件, 带导向肋
艾睿:
TE Connectivity&s;s 103681-2 discrete wire housing allows for durable connections between discrete wires. This RCP connector has 10 RCP contacts. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a receptacle type gender. This device has a maximum current rating of 3 A/contact. 103681-2 is housed in black thermoplastic. Its wire is 22-30 AWG. This rectangle connector has an operating temperature of -65 to 105 °C. This product is 17.39 mm long, 11.76 mm tall and 18.66 mm deep.
安富利:
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount
Chip1Stop:
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Package
Verical:
Connector Accessories Shroud 10 POS
MASTER:
COUPLING SHROUD, AMPMODU MTE, .100X.100 C/L, DOUBLE ROW
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
10 MTE COUPLING SHRD DR
Electro Sonic:
10 MTE COUPLING SHRD DR
触点数 10
绝缘电阻 5.00 GΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 10
触点额定电流 3.00 A
额定电流Max 3A/触头
长度 17.39 mm
宽度 18.66 mm
高度 11.76 mm
外壳颜色 Black
颜色 Black
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8538906000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
103681-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
15-04-5104 莫仕 | 类似代替 | 103681-2和15-04-5104的区别 |
0015045104 莫仕 | 类似代替 | 103681-2和0015045104的区别 |
