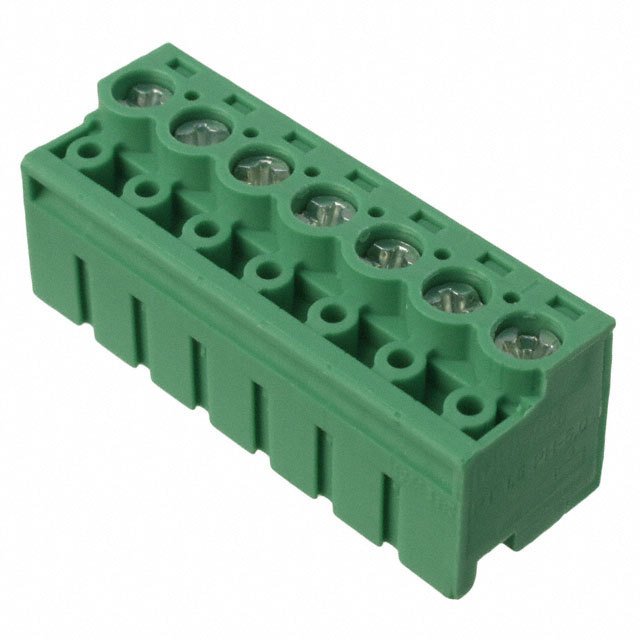

Phoenix Contact COMBICON PT 系列 5mm 节距 7 路 母 绿色 插头 1755635, 螺钉端接
Conn Terminal Block F 7 POS 5mm Screw RA Cable Mount 10A
得捷:
TERM BLOCK PLUG 7POS 90DEG 5MM
欧时:
Phoenix Contact 1755635 COMBICON PT 系列 5mm 节距 7 路 母 插头, 螺钉端接 绿色
贸泽:
Pluggable Terminal Blocks 7 Pos 5mm pitch Plug 26-14 AWG Screw
艾睿:
Perfect for troubleshooting this 1755635 PCB terminal block manufactured from Phoenix Contact will help isolate sections of a circuit. This F connector has 7 contacts that are plated with tin. It has a maximum voltage rating of 400 V. This is a 1-row connector. Its pitch is 5 mm. It has a right angle body orientation. It has a female type gender. 1755635 is housed in polyamide. This device has a maximum current rating of 10 A. This product is 35 mm long, 13.15 mm tall and 12.2 mm deep. It uses the screw termination method. Its wire is 12-26 AWG.
MASTER:
PCB connector - nominal current: 10 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - number of positions: 7 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 7 POS 5mm Screw RA Cable Mount 10A
Electro Sonic:
PCB connector - nominal current: 10 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - ...
