1863013

Phoenix Contact MCVW 系列 3.5mm 节距 3 路 母 绿色 印刷电路板连接器 1863013, 螺钉端接

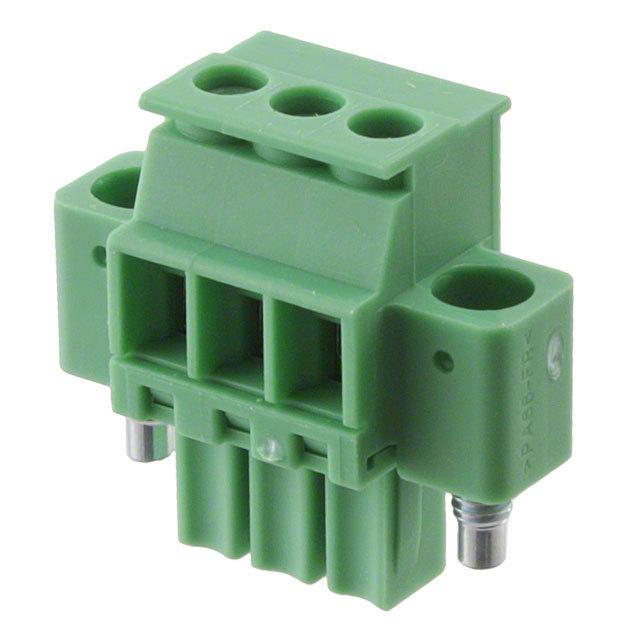

3 Position Terminal Block Plug, Female Sockets 0.138" 3.50mm 270° Free Hanging In-Line

得捷:
TERM BLOCK PLUG 3POS 3.5MM

欧时:
Phoenix Contact 1863013 MCVW 系列 3.5mm 节距 3 路 母 印刷电路板连接器, 螺钉端接 绿色

贸泽:
Pluggable Terminal Blocks 3 Pos 3.5mm pitch Plug 28-16 AWG Screw

艾睿:
Keep your connections strong with this 1863013 PCB terminal block from Phoenix Contact utilizing clamps and screws. This F connector has 3 contacts that are plated with tin. It has a female type gender. Its pitch is 3.5 mm. It has a maximum voltage rating of 160 V. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 8 A. 1863013 is housed in polyamide. This product is 20.9 mm long, 19.1 mm tall and 10.4 mm deep. Its wire is 16-28 AWG. It uses the screw termination method.

Verical:
Conn Terminal Block F 3 POS 3.5mm Screw ST Panel Mount 8A

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 3 - pitch: 3.5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
