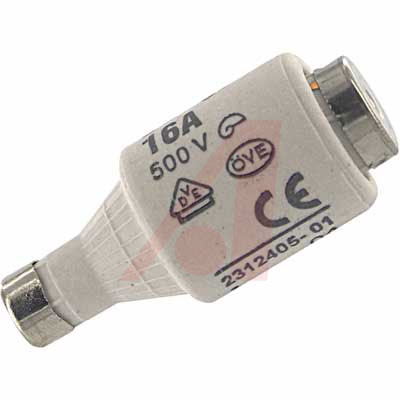

Fuse; Diazed; Slow Blow; 16A; Sz DII-E 27; Class gL/gG; Dims 0.52x1.97; Glass; 500VAC
**Overview:
* **Diazed fuses Bottle fuses are available in five sizes: ND to 35 A, DII to 35 A, DIII to 100 A, DIV to 100 A, and DV to 200 A.**
* **Fuse accessories are sized to match.**
* **Each fuse body has a different diameter to fit only into the appropriate screw cap and fuse base.**
* **Fuse tips have different diameters, depending on their current rating. The diameter of the tip matches the diameter of the hole in the adapter screw to ensure that no fuse with a higher rating than intended for the circuit can be installed.**
* **Fuses and adapter screws are color-coded to avoid mismatching.**
* **Pop-out, color-coded indicators on fuse heads give visible indication of a blown fuse.**
* **Diazed fuse bases are available in 1-Pole and 3-Pole designs.**
* **Fuse bases can be panel-mounted or snapped onto a standard 35mm DIN rail.**
* **gL/gG - Slow Blow operating class protects cable, equipment, and conductors from damage due to overloads and short circuits.
