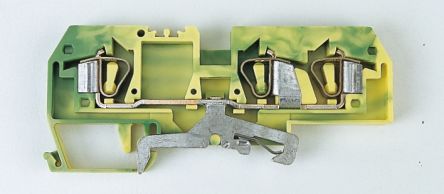

Protective terminal block for 3 conductorsProtective terminal blocks for 3 conductors 1 input and 2 output for mounting on DIN-type TS 35 rails. These terminals feature cage clamp technology for ultra-quick connection. These terminals are front-wired, and four versions are available to receive wire sections 1.5 to 6 mm2. These terminal blocks can receive end plates designed for standard terminal blocks. Colour: green / yellow | | ---|---|--- Permitted wire cross-section: | 1.5 mm2 | 6 mm2 Current: | 18 A | 41 A Reference voltage: | 800 V | 800 V Terminal width: | 4 mm | 8 mm Stripping length: | 8 → 9 mm | 12 to 13 mm ### 870 系列 - Wago DIN 导轨端子### 870 系列紧凑型无螺钉 DIN 导轨安装接线端子适合与 TS35顶帽导轨一起使用。 由于新笼式弹簧夹设计旨在满足缩小现场机柜空间的需要，因此端子体积小巧。接受 0,08 - 2,5 mm²/4 mm² 柔性导线电缆 前布线可进一步节省空间 额定值：500V/6kV/24A 跳片额定电流：18A 还提供合适的标记卡和标签（每包含 5 张卡，每张卡带 100 个标记）
Terminal Block Connector 3 Position Ground, Earth Green, Yellow 10-24 AWG
欧时:
Protective terminal block for 3 conductorsProtective terminal blocks for 3 conductors 1 input and 2 output for mounting on DIN-type TS 35 rails. These terminals feature cage clamp technology for ultra-quick connection. These terminals are front-wired, and four versions are available to receive wire sections 1.5 to 6 mm2. These terminal blocks can receive end plates designed for standard terminal blocks. Colour: green / yellow | | ---|---|--- Permitted wire cross-section: | 1.5 mm2 | 6 mm2 Current: | 18 A | 41 A Reference voltage: | 800 V | 800 V Terminal width: | 4 mm | 8 mm Stripping length: | 8 → 9 mm | 12 to 13 mm ### 870 系列 - Wago DIN 导轨端子### 870 系列紧凑型无螺钉 DIN 导轨安装接线端子适合与 TS35顶帽导轨一起使用。 由于新笼式弹簧夹设计旨在满足缩小现场机柜空间的需要，因此端子体积小巧。接受 0,08 - 2,5 mm²/4 mm² 柔性导线电缆 前布线可进一步节省空间 额定值：500V/6kV/24A 跳片额定电流：18A 还提供合适的标记卡和标签（每包含 5 张卡，每张卡带 100 个标记）
得捷:
3-CONDUCTOR GROUND TERMINAL BLOC
立创商城:
282-687
艾睿:
Conn Terminal Block F 3 POS T DIN Rail Box
Verical:
Conn Terminal Block F 3 POS T DIN Rail Box
Newark:
# WAGO 282-687 DIN Rail Mount Terminal Block, Ground, 3 Positions, 24 AWG, 10 AWG, 6 mm², Clamp, 41 A
