Switch Key OFF Mom SPST 0.025A 50VAC 50VDC PC Pins Thru-Hole

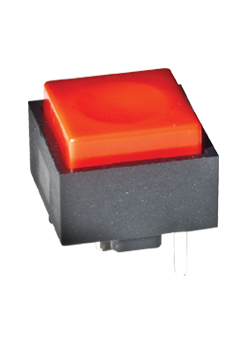

Looking for a secure tool that can power your circuit on and off? The single pole key switch, developed by C&K Components, is the solution. It has a SPST configuration. This square button actuator is 2.29 mm long and made from Acrylonitrile Butadiene Styrene. This part has a minimum operating temperature of -30 °C and a maximum of 65 °C. It has 2 terminals. The KS11R29CQD part has a PC pin termination style. The maximum AC voltage rating is 50 VAC and the maximum DC voltage rating is 50 VDC. This product is 12.32 mm long, 9.86 mm tall and 12.32 mm deep.
绝缘电阻 1000000000 Ω
触点类型 SPST
接触电阻 0.1 mΩ
触点额定电流 25.0 mA
额定电流Max 0.025A @50VAC, 50VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 50 V
额定电压AC Max 50 V
接触电阻Max <100 mΩ
安装方式 Lug
封装 -
长度 12.32 mm
高度 7.57 mm
封装 -
触点材质 Stainless Steel
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KS11R29CQD C&K Components | 当前型号 | 当前型号 |
KS11R21CQD C&K Components | 完全替代 | KS11R29CQD和KS11R21CQD的区别 |
KS11R22CQE C&K Components | 完全替代 | KS11R29CQD和KS11R22CQE的区别 |
KS11R21CQE C&K Components | 完全替代 | KS11R29CQD和KS11R21CQE的区别 |
