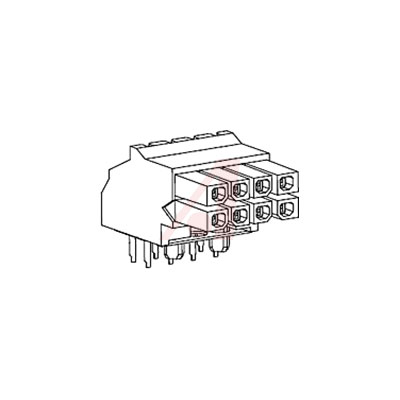

44764-0803图片1
44764-0803图片2
44764-0803图片3
44764-0803图片4
44764-0803图片5
44764-0803图片6
44764-0803图片7
44764-0803概述

MICRO - FIT ( 3.0 ) BMI R /插座组件4 - 24电路 MICRO-FIT 3.0 BMI R/A RECEPTACLE ASSY 4 - 24 CIRCUIT

Micro-Fit 3.0™ Connectors

Micro-Fit 3.0™ Connectors are a 3.00mm pitch high-density, low-power connector system available in wire-to-wire and wire-to-board configurations with SMT and through-hole options and up to 5.0A to meet low- to mid-range power application needs. ’s Micro-Fit 3.0 Interconnects offer users a low- to mid-range power-distribution solution with the highest current in the smallest footprint available today. Based on a 3.0mm centerline Micro-Fit 3.0 is available in wire-to-wire and wire-to-board configurations, SMT and through-hole processing, 2 to 24 circuits and single- and dual-row versions. Micro-Fit 3.0 Connectors can be purchased in pure tin or one of two thicknesses of select gold to provide costs savings. Contacts are fully isolated on each side of the interface to eliminate potential arcing and incorporate four points of contact for redundancy. The housings utilize positive-lock features to prevent accidental disconnects. Micro-Fit 3.0 Interconnects are UL recognized, CSA approved and TUV licensed. All components are leadfree, RoHS compliant, halogen free and glow wire capable.

44764-0803中文资料参数规格
技术参数

触点数 8

极性 Female

触点电镀 Gold

额定电流 5.00 A

排数 2

灼热丝测试标准 Non-Compliant

无卤素状态 Low Halogen

方向 Right Angle

电路数 8

针脚数 8

拔插次数 30

额定电流Max 5A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 600 V

封装参数

安装方式 Through Hole

外形尺寸

高度 10.45 mm

物理参数

外壳颜色 Black

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买44764-0803
型号: 44764-0803
制造商: Molex 莫仕
描述:MICRO - FIT ( 3.0 ) BMI R /插座组件4 - 24电路 MICRO-FIT 3.0 BMI R/A RECEPTACLE ASSY 4 - 24 CIRCUIT
